Bonded Neodymium Ring Magnets

From $6.47$42.27

Clear

Bonded Neodymium Magnets offer less flux than sintered magnets. They can be formed into intricately shaped parts and do not suffer significant magnetic losses. Our Ring shaped magnets are used in many different applications. Common applications include automotive and electrical motors.

Click here to learn more about Neodymium Magnets and their uses.

Weight N/A
Dimensions N/A
Size (D x T)

1.024 in x 0.197 in, 1.024 in x 0.394 in, 1.181 in x 0.197 in, 1.181 in x 0.394 in, 1.378 in x 0.197 in, 1.378 in x 0.394 in

Diameter

1.024 in, 1.181 in, 1.378 in

Inside Diameter

0.63 in, 0.811 in, 0.866 in

Thickness

0.197 in, 0.394 in

Holding Force (lbs)

0.6, 1.1, 2, 4

Material

Neodymium

Package Quantity

1

Specs

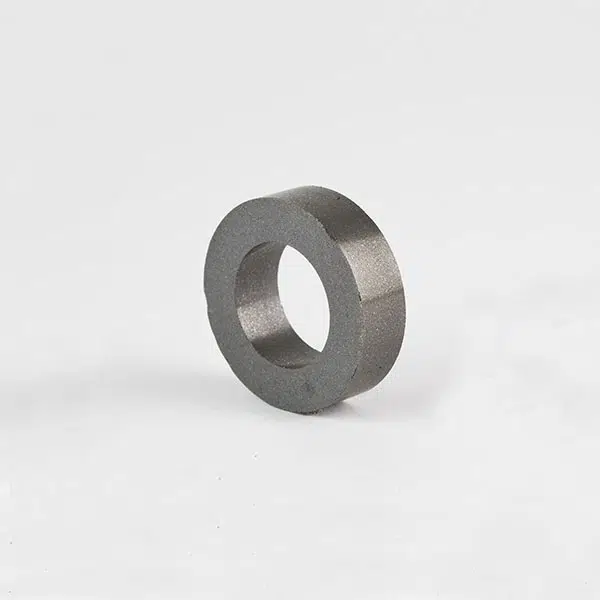

  • PART # NB025-AM

    Size (D x T)1.378 in x 0.394 in
    Diameter1.378 in
    Inside Diameter0.811 in
    Thickness0.394 in
    Holding Force (lbs)4
    MaterialNeodymium
    Package Quantity1

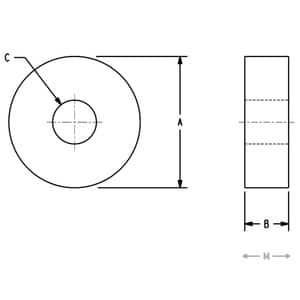

    DiagramView Spec Image
    OD1.378
    ID.811
    T.394
  • PART # NB020-BM

    Size (D x T)1.024 in x 0.197 in
    Diameter1.024 in
    Inside Diameter0.866 in
    Thickness0.197 in
    Holding Force (lbs)0.6
    MaterialNeodymium
    Package Quantity1
    DiagramView Spec Image
    OD1.024
    ID.866
    T.197
  • PART # NB025-CM

    Size (D x T)1.378 in x 0.197 in
    Diameter1.378 in
    Inside Diameter0.811 in
    Thickness0.197 in
    Holding Force (lbs)2
    MaterialNeodymium
    Package Quantity1
    DiagramView Spec Image
    OD1.378
    ID.811
    T.197
  • PART # NB020-CM

    Size (D x T)1.024 in x 0.394 in
    Diameter1.024 in
    Inside Diameter0.866 in
    Thickness0.394 in
    Holding Force (lbs)1.1
    MaterialNeodymium
    Package Quantity1
    DiagramView Spec Image
    OD1.024
    ID.866
    T.394
  • PART # NB048-CM

    Size (D x T)1.181 in x 0.197 in
    Diameter1.181 in
    Inside Diameter0.63 in
    Thickness0.197 in
    Holding Force (lbs)2
    MaterialNeodymium
    Package Quantity1
    DiagramView Spec Image
    OD1.181
    ID.630
    T.197
  • PART # NB048-BM

    Size (D x T)1.181 in x 0.394 in
    Diameter1.181 in
    Inside Diameter0.63 in
    Thickness0.394 in
    Holding Force (lbs)4
    MaterialNeodymium
    Package Quantity1
    DiagramView Spec Image
    OD1.181
    ID.630
    T.394
