Neodymium Disc Magnets, N42, Plated

From $0.14 – $117.60

Know your SKU?

Size (D x T)

Diameter

Thickness

Holding Force (lbs)
Clear

Quantity
View Quantity Discounts

SKU: N/A Category: Neodymium Disc Magnets Tags: Disc, Permanent Magnet, Plated, Rare Earth Magnet

Description
Additional information

Strong N42 Neodymium Magnets Online

N42 neodymium disc magnets combine one of the most popular grades of neodymium with one of the most popular design shapes. Because the basic idea is so popular, BuyMagnets.com goes above and beyond to offer plated N42 neodymium magnets in as many sizes and strengths as possible. All of our N42 disc magnets are plated to protect against corrosion and chipping.

N42 Neodymium Magnets are perfect for just about any application. They have a maximum working temperature of 80 ℃, or 176°F, which makes N42s a better choice for applications where higher working temperatures are involved. N42 disc magnets are an excellent choice for both Home and Industrial applications, and have a wide variety of uses including, but not limited to, the following:

Industrial applications

– Parts Retrieval

– Lifting Machinery

– Magnetically coupled pumps

– and much more!

Home and Office

– Arts and Craft Projects

– Home Improvement

– Hanging artwork or other decorations

– and much more!

To protect the magnet from corrosion and to strengthen the magnet material, it is usually preferable for the magnet to be coated. There are a number of options for coatings, but nickel is the most common and preferred.

Neodymium magnets are part of the Rare Earth magnet family and are the most powerful permanent magnets in the world. They are referred to as NdFeB magnets, or NIB, because they are composed of Neodymium (Nd), Iron (Fe) and Boron (B).

Click here to learn more about neodymium magnets and their uses.

Weight	N/A
Dimensions	N/A
Size (D x T)	0.062 in x 0.062 in, 0.062 in x 0.125 in, 0.062 in x 0.187 in, 0.062 in x 0.25 in, 0.062 in x 0.375 in, 0.062 in x 0.5 in, 0.118 in x 0.512 in, 0.118 in x 0.787 in, 0.12 in x 0.06 in, 0.125 in x 0.125 in, 0.125 in x 0.187 in, 0.125 in x 0.25 in, 0.125 in x 0.375 in, 0.125 in x 0.5 in, 0.125 in x 0.75 in, 0.125 in x 1 in, 0.157 in x 0.236 in, 0.187 in x 0.06 in, 0.187 in x 0.125 in, 0.187 in x 0.187 in, 0.187 in x 0.25 in, 0.187 in x 0.375 in, 0.187 in x 0.5 in, 0.197 in x 0.394 in, 0.197 in x 0.787 in, 0.197 in x 1.181 in, 0.22 in x 0.1 in, 0.22 in x 0.25 in, 0.22 in x 0.5 in, 0.236 in x 0.315 in, 0.25 in x 0.062 in, 0.25 in x 0.1 in, 0.25 in x 0.125 in, 0.25 in x 0.187 in, 0.25 in x 0.2 in, 0.25 in x 0.25 in, 0.25 in x 0.375 in, 0.25 in x 0.5 in, 0.25 in x 0.75 in, 0.25 in x 1 in, 0.312 in x 0.062 in, 0.312 in x 0.125 in, 0.312 in x 0.187 in, 0.312 in x 0.25 in, 0.312 in x 0.375 in, 0.312 in x 0.5 in, 0.315 in x 0.787 in, 0.315 in x 1.181 in, 0.32 in x 0.25 in, 0.375 in x 0.06 in, 0.375 in x 0.1 in, 0.375 in x 0.125 in, 0.375 in x 0.187 in, 0.375 in x 0.2 in, 0.375 in x 0.25 in, 0.375 in x 0.375 in, 0.375 in x 0.5 in, 0.375 in x 0.75 in, 0.375 in x 1 in, 0.375 in x 1.5 in, 0.393 in x 0.039 in, 0.394 in x 0.118 in, 0.394 in x 0.157 in, 0.394 in x 0.197 in, 0.394 in x 0.394 in, 0.394 in x 0.787 in, 0.394 in x 1.181 in, 0.437 in x 0.062 in, 0.437 in x 0.125 in, 0.437 in x 0.187 in, 0.437 in x 0.25 in, 0.437 in x 0.375 in, 0.437 in x 0.5 in, 0.472 in x 0.079 in, 0.5 in x 0.06 in, 0.5 in x 0.125 in, 0.5 in x 0.187 in, 0.5 in x 0.2 in, 0.5 in x 0.25 in, 0.5 in x 0.375 in, 0.5 in x 0.5 in, 0.5 in x 0.75 in, 0.5 in x 1 in, 0.5 in x 1.5 in, 0.551 in x 0.157 in, 0.591 in x 0.039 in, 0.591 in x 0.157 in, 0.625 in x 0.1 in, 0.625 in x 0.125 in, 0.625 in x 0.187 in, 0.625 in x 0.25 in, 0.709 in x 0.118 in, 0.748 in x 0.197 in, 0.75 in x 0.125 in, 0.75 in x 0.25 in, 0.75 in x 0.375 in, 0.75 in x 0.5 in, 0.75 in x 0.625 in, 0.75 in x 0.75 in, 0.75 in x 1 in, 0.75 in x 1.5 in, 0.787 in x 0.019 in, 0.787 in x 0.039 in, 0.787 in x 0.079 in, 0.787 in x 0.118 in, 0.787 in x 0.197 in, 0.787 in x 0.394 in, 0.866 in x 0.236 in, 0.866 in x 0.394 in, 0.984 in x 0.394 in, 1 in x 0.125 in, 1 in x 0.187 in, 1 in x 0.25 in, 1 in x 0.375 in, 1 in x 0.5 in, 1 in x 0.625 in, 1 in x 0.75 in, 1 in x 0.875 in, 1 in x 1 in, 1 in x 1.5 in, 1.000 in x 0.062 in, 1.5 in x 0.25 in, 1.5 in x 0.75 in, 1.5 in x 1 in, 1.5 in x 1.5 in, 1.5 in x 2 in, 1.575 in x 0.197 in, 2.00 in x 0.50 in
Diameter	0.062 in, 0.118 in, 0.12 in, 0.125 in, 0.157 in, 0.187 in, 0.197 in, 0.22 in, 0.236 in, 0.25 in, 0.312 in, 0.315 in, 0.32 in, 0.375 in, 0.393 in, 0.394 in, 0.437 in, 0.472 in, 0.5 in, 0.551 in, 0.591 in, 0.625 in, 0.709 in, 0.748 in, 0.75 in, 0.787 in, 0.866 in, 0.984 in, 1 in, 1.000 in, 1.5 in, 1.575 in, 2.00 in
Thickness	0.019 in, 0.039 in, 0.06 in, 0.062 in, 0.079 in, 0.1 in, 0.118 in, 0.125 in, 0.157 in, 0.187 in, 0.197 in, 0.2 in, 0.236 in, 0.25 in, 0.315 in, 0.375 in, 0.394 in, 0.5 in, 0.50 in, 0.512 in, 0.625 in, 0.75 in, 0.787 in, 0.875 in, 1 in, 1.181 in, 1.5 in, 2 in
Holding Force (lbs)	0.1, 0.12, 0.13, 0.15, 0.190, 0.2, 0.40, 0.68, 0.72, 0.78, 0.80, 0.81, 0.85, 0.86, 0.87, 0.88, 0.89, 1.18, 1.25, 1.36, 1.41, 1.51, 1.64, 1.76, 1.83, 1.96, 1.99, 10.27, 10.67, 10.88, 105, 11.53, 12.60, 12.7, 121, 13.43, 14.60, 145, 15.3, 15.5, 15.95, 153, 16.60, 16.85, 17.22, 18.82, 2.01, 2.09, 2.10, 2.26, 2.3, 2.48, 2.53, 2.58, 2.69, 2.71, 2.99, 21.86, 22.37, 24, 26.93, 27.20, 27.6, 3.02, 3.07, 3.11, 3.14, 3.35, 3.39, 3.57, 3.87, 30.05, 31.21, 31.98, 32.5, 34, 36.6, 37.65, 37.7, 37.84, 4.05, 4.13, 4.33, 4.39, 4.41, 44, 49.65, 5.09, 5.32, 5.42, 5.54, 5.75, 5.8, 55.30, 58.15, 6.02, 6.13, 6.17, 6.21, 6.44, 6.48, 6.53, 6.74, 6.75, 6.86, 61, 66, 7.45, 7.96, 8.20, 8.50, 8.65, 8.75, 8.85, 8.87, 8.96, 9.1, 9.12, 9.2, 9.49, 9.55, 9.76, 9.81, 9.83, 93.15
Material	Neodymium
Grade	N42
Package Quantity	1

Specs

PART # N42P2000500
Size (D x T) 2.00 in x 0.50 in
Diameter 2.00 in
Thickness 0.50 in
Holding Force (lbs) 105
Material Neodymium
Grade N42
Package Quantity 1

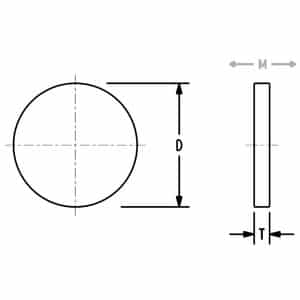

Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 2.00
T 0.50
PART # N42P437187
Size (D x T) 0.437 in x 0.187 in
Diameter 0.437 in
Thickness 0.187 in
Holding Force (lbs) 7.45
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .437
T .187
PART # N42P437250
Size (D x T) 0.437 in x 0.25 in
Diameter 0.437 in
Thickness 0.25 in
Holding Force (lbs) 8.85
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .437
T .250
PART # N42P437375
Size (D x T) 0.437 in x 0.375 in
Diameter 0.437 in
Thickness 0.375 in
Holding Force (lbs) 10.67
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .437
T .375
PART # N42P437500
Size (D x T) 0.437 in x 0.5 in
Diameter 0.437 in
Thickness 0.5 in
Holding Force (lbs) 11.53
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .437
T .500
PART # N42P500060
Size (D x T) 0.5 in x 0.06 in
Diameter 0.5 in
Thickness 0.06 in
Holding Force (lbs) 3.07
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .500
T .060
PART # N42P5001000
Size (D x T) 0.5 in x 1 in
Diameter 0.5 in
Thickness 1 in
Holding Force (lbs) 16.60
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .500
T 1.000
PART # N42P500125
Size (D x T) 0.5 in x 0.125 in
Diameter 0.5 in
Thickness 0.125 in
Holding Force (lbs) 6.44
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .500
T .125
PART # N42P5001500
Size (D x T) 0.5 in x 1.5 in
Diameter 0.5 in
Thickness 1.5 in
Holding Force (lbs) 16.85
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .500
T 1.500
PART # N42P500187
Size (D x T) 0.5 in x 0.187 in
Diameter 0.5 in
Thickness 0.187 in
Holding Force (lbs) 9.12
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .500
T .187
PART # N42P500200
Size (D x T) 0.5 in x 0.2 in
Diameter 0.5 in
Thickness 0.2 in
Holding Force (lbs) 9.49
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .500
T .200
PART # N42P500250
Size (D x T) 0.5 in x 0.25 in
Diameter 0.5 in
Thickness 0.25 in
Holding Force (lbs) 10.88
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .500
T .250
PART # N42P500375
Size (D x T) 0.5 in x 0.375 in
Diameter 0.5 in
Thickness 0.375 in
Holding Force (lbs) 13.43
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .500
T .375
PART # N42P500500
Size (D x T) 0.5 in x 0.5 in
Diameter 0.5 in
Thickness 0.5 in
Holding Force (lbs) 14.60
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .500
T .500
PART # N42P500750
Size (D x T) 0.5 in x 0.75 in
Diameter 0.5 in
Thickness 0.75 in
Holding Force (lbs) 15.5
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .500
T .750
PART # N42P625100
Size (D x T) 0.625 in x 0.1 in
Diameter 0.625 in
Thickness 0.1 in
Holding Force (lbs) 6.13
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .625
T .100
PART # N42P625250
Size (D x T) 0.625 in x 0.25 in
Diameter 0.625 in
Thickness 0.25 in
Holding Force (lbs) 15.3
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .625
T .250
PART # N42P7501000
Size (D x T) 0.75 in x 1 in
Diameter 0.75 in
Thickness 1 in
Holding Force (lbs) 36.6
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .750
T 1.000
PART # N42P750125
Size (D x T) 0.75 in x 0.125 in
Diameter 0.75 in
Thickness 0.125 in
Holding Force (lbs) 9.76
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .750
T .125
PART # N42P7501500
Size (D x T) 0.75 in x 1.5 in
Diameter 0.75 in
Thickness 1.5 in
Holding Force (lbs) 37.7
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .750
T 1.500
PART # N42P750250
Size (D x T) 0.75 in x 0.25 in
Diameter 0.75 in
Thickness 0.25 in
Holding Force (lbs) 18.82
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .750
T .250
PART # N42P750375
Size (D x T) 0.75 in x 0.375 in
Diameter 0.75 in
Thickness 0.375 in
Holding Force (lbs) 24
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .750
T .375
PART # N42P750500
Size (D x T) 0.75 in x 0.5 in
Diameter 0.75 in
Thickness 0.5 in
Holding Force (lbs) 27.6
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .750
T .500
PART # N42P750625
Size (D x T) 0.75 in x 0.625 in
Diameter 0.75 in
Thickness 0.625 in
Holding Force (lbs) 30.05
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .750
T .625
PART # N42P750750
Size (D x T) 0.75 in x 0.75 in
Diameter 0.75 in
Thickness 0.75 in
Holding Force (lbs) 32.5
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .750
T .750
PART # N42P062375
Size (D x T) 0.062 in x 0.375 in
Diameter 0.062 in
Thickness 0.375 in
Holding Force (lbs) 0.190
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .062
T .375
PART # N42P1000062
Size (D x T) 1.000 in x 0.062 in
Diameter 1.000 in
Thickness 0.062 in
Holding Force (lbs) 6.74
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.00
T .062
PART # N42P625125
Size (D x T) 0.625 in x 0.125 in
Diameter 0.625 in
Thickness 0.125 in
Holding Force (lbs) 8.20
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .625
T .125
PART # N42P625187
Size (D x T) 0.625 in x 0.187 in
Diameter 0.625 in
Thickness 0.187 in
Holding Force (lbs) 12.7
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .625
T .187
PART # EP288
Size (D x T) 0.787 in x 0.079 in
Diameter 0.787 in
Thickness 0.079 in
Holding Force (lbs) 6.21
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .787
T .079
PART # EP307
Size (D x T) 0.393 in x 0.039 in
Diameter 0.393 in
Thickness 0.039 in
Holding Force (lbs) 1.25
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .393
T .039
PART # EP309
Size (D x T) 0.591 in x 0.039 in
Diameter 0.591 in
Thickness 0.039 in
Holding Force (lbs) 2.01
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .591
T .039
PART # EP325
Size (D x T) 0.315 in x 1.181 in
Diameter 0.315 in
Thickness 1.181 in
Holding Force (lbs) 6.75
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .315
T 1.181
PART # EP336
Size (D x T) 0.787 in x 0.197 in
Diameter 0.787 in
Thickness 0.197 in
Holding Force (lbs) 17.22
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .787
T .197
PART # EP344
Size (D x T) 0.197 in x 0.787 in
Diameter 0.197 in
Thickness 0.787 in
Holding Force (lbs) 2.48
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .197
T .787
PART # EP346
Size (D x T) 0.118 in x 0.512 in
Diameter 0.118 in
Thickness 0.512 in
Holding Force (lbs) 0.80
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .118
T .512
PART # EP347
Size (D x T) 0.118 in x 0.787 in
Diameter 0.118 in
Thickness 0.787 in
Holding Force (lbs) 0.81
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .118
T .787
PART # EP348
Size (D x T) 0.394 in x 0.394 in
Diameter 0.394 in
Thickness 0.394 in
Holding Force (lbs) 8.87
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .394
T .394
PART # EP350
Size (D x T) 0.157 in x 0.236 in
Diameter 0.157 in
Thickness 0.236 in
Holding Force (lbs) 1.41
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .157
T .236
PART # EP355
Size (D x T) 0.866 in x 0.394 in
Diameter 0.866 in
Thickness 0.394 in
Holding Force (lbs) 31.98
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .866
T .394
PART # EP358
Size (D x T) 0.984 in x 0.394 in
Diameter 0.984 in
Thickness 0.394 in
Holding Force (lbs) 37.84
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .984
T .394
PART # EP359
Size (D x T) 0.551 in x 0.157 in
Diameter 0.551 in
Thickness 0.157 in
Holding Force (lbs) 8.96
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .551
T .157
PART # EP360
Size (D x T) 1.575 in x 0.197 in
Diameter 1.575 in
Thickness 0.197 in
Holding Force (lbs) 31.21
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.575
T .197
PART # EP370
Size (D x T) 0.472 in x 0.079 in
Diameter 0.472 in
Thickness 0.079 in
Holding Force (lbs) 3.39
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .472
T .079
PART # EP372
Size (D x T) 0.709 in x 0.118 in
Diameter 0.709 in
Thickness 0.118 in
Holding Force (lbs) 8.65
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .709
T .118
PART # EP375
Size (D x T) 0.315 in x 0.787 in
Diameter 0.315 in
Thickness 0.787 in
Holding Force (lbs) 6.53
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .315
T .787
PART # EP376
Size (D x T) 0.394 in x 0.787 in
Diameter 0.394 in
Thickness 0.787 in
Holding Force (lbs) 9.83
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .394
T .787
PART # EP377
Size (D x T) 0.394 in x 1.181 in
Diameter 0.394 in
Thickness 1.181 in
Holding Force (lbs) 10.27
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .394
T 1.181
PART # EP406
Size (D x T) 0.787 in x 0.118 in
Diameter 0.787 in
Thickness 0.118 in
Holding Force (lbs) 9.55
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .787
T .118
PART # EP407
Size (D x T) 0.787 in x 0.039 in
Diameter 0.787 in
Thickness 0.039 in
Holding Force (lbs) 2.71
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .787
T .039
PART # EP528
Size (D x T) 0.591 in x 0.157 in
Diameter 0.591 in
Thickness 0.157 in
Holding Force (lbs) 9.81
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .591
T .157
PART # EP530
Size (D x T) 0.866 in x 0.236 in
Diameter 0.866 in
Thickness 0.236 in
Holding Force (lbs) 21.86
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .866
T .236
PART # EP559
Size (D x T) 0.787 in x 0.019 in
Diameter 0.787 in
Thickness 0.019 in
Holding Force (lbs) 1.36
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .787
T .019
PART # EP642
Size (D x T) 0.197 in x 0.394 in
Diameter 0.197 in
Thickness 0.394 in
Holding Force (lbs) 2.26
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .197
T .394
PART # EP645
Size (D x T) 0.394 in x 0.197 in
Diameter 0.394 in
Thickness 0.197 in
Holding Force (lbs) 6.48
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .394
T .197
PART # EP646
Size (D x T) 0.787 in x 0.394 in
Diameter 0.787 in
Thickness 0.394 in
Holding Force (lbs) 26.93
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .787
T .394
PART # EP653
Size (D x T) 0.197 in x 1.181 in
Diameter 0.197 in
Thickness 1.181 in
Holding Force (lbs) 2.53
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .197
T 1.181
PART # EP654
Size (D x T) 0.394 in x 0.157 in
Diameter 0.394 in
Thickness 0.157 in
Holding Force (lbs) 5.54
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .394
T .157
PART # N42P062062
Size (D x T) 0.062 in x 0.062 in
Diameter 0.062 in
Thickness 0.062 in
Holding Force (lbs) 0.1
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .062
T .062
PART # N42P062125
Size (D x T) 0.062 in x 0.125 in
Diameter 0.062 in
Thickness 0.125 in
Holding Force (lbs) 0.12
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .062
T .125
PART # N42P062187
Size (D x T) 0.062 in x 0.187 in
Diameter 0.062 in
Thickness 0.187 in
Holding Force (lbs) 0.13
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .062
T .187
PART # N42P062250
Size (D x T) 0.062 in x 0.25 in
Diameter 0.062 in
Thickness 0.25 in
Holding Force (lbs) 0.15
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .062
T .250
PART # N42P062500
Size (D x T) 0.062 in x 0.5 in
Diameter 0.062 in
Thickness 0.5 in
Holding Force (lbs) 0.2
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .062
T .500
PART # N42P10001000
Size (D x T) 1 in x 1 in
Diameter 1 in
Thickness 1 in
Holding Force (lbs) 61
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.000
T 1.000
PART # N42P1000125
Size (D x T) 1 in x 0.125 in
Diameter 1 in
Thickness 0.125 in
Holding Force (lbs) 12.60
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.000
T .125
PART # N42P10001500
Size (D x T) 1 in x 1.5 in
Diameter 1 in
Thickness 1.5 in
Holding Force (lbs) 66
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.000
T 1.500
PART # N42P1000187
Size (D x T) 1 in x 0.187 in
Diameter 1 in
Thickness 0.187 in
Holding Force (lbs) 22.37
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.000
T .187
PART # N42P1000250
Size (D x T) 1 in x 0.25 in
Diameter 1 in
Thickness 0.25 in
Holding Force (lbs) 27.20
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.000
T .250
PART # N42P1000375
Size (D x T) 1 in x 0.375 in
Diameter 1 in
Thickness 0.375 in
Holding Force (lbs) 37.65
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.000
T .375
PART # N42P1000500
Size (D x T) 1 in x 0.5 in
Diameter 1 in
Thickness 0.5 in
Holding Force (lbs) 44
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.000
T .500
PART # N42P1000625
Size (D x T) 1 in x 0.625 in
Diameter 1 in
Thickness 0.625 in
Holding Force (lbs) 49.65
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.000
T .625
PART # EP659
Size (D x T) 0.394 in x 0.118 in
Diameter 0.394 in
Thickness 0.118 in
Holding Force (lbs) 4.33
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .394
T .118
PART # N42P1000750
Size (D x T) 1 in x 0.75 in
Diameter 1 in
Thickness 0.75 in
Holding Force (lbs) 55.30
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.000
T .750
PART # N42P1000875
Size (D x T) 1 in x 0.875 in
Diameter 1 in
Thickness 0.875 in
Holding Force (lbs) 58.15
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.000
T .875
PART # N42P120060
Size (D x T) 0.12 in x 0.06 in
Diameter 0.12 in
Thickness 0.06 in
Holding Force (lbs) 0.40
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .120
T .060
PART # N42P1251000
Size (D x T) 0.125 in x 1 in
Diameter 0.125 in
Thickness 1 in
Holding Force (lbs) 0.89
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .125
T 1.000
PART # N42P125125
Size (D x T) 0.125 in x 0.125 in
Diameter 0.125 in
Thickness 0.125 in
Holding Force (lbs) 0.68
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .125
T .125
PART # N42P125187
Size (D x T) 0.125 in x 0.187 in
Diameter 0.125 in
Thickness 0.187 in
Holding Force (lbs) 0.78
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .125
T .187
PART # N42P125250
Size (D x T) 0.125 in x 0.25 in
Diameter 0.125 in
Thickness 0.25 in
Holding Force (lbs) 0.85
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .125
T .250
PART # N42P125375
Size (D x T) 0.125 in x 0.375 in
Diameter 0.125 in
Thickness 0.375 in
Holding Force (lbs) 0.86
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .125
T .375
PART # N42P125500
Size (D x T) 0.125 in x 0.5 in
Diameter 0.125 in
Thickness 0.5 in
Holding Force (lbs) 0.87
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .125
T .500
PART # N42P125750
Size (D x T) 0.125 in x 0.75 in
Diameter 0.125 in
Thickness 0.75 in
Holding Force (lbs) 0.88
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .125
T .750
PART # N42P15001000
Size (D x T) 1.5 in x 1 in
Diameter 1.5 in
Thickness 1 in
Holding Force (lbs) 121
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.500
T 1.000
PART # N42P15001500
Size (D x T) 1.5 in x 1.5 in
Diameter 1.5 in
Thickness 1.5 in
Holding Force (lbs) 145
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.500
T 1.500
PART # N42P15002000
Size (D x T) 1.5 in x 2 in
Diameter 1.5 in
Thickness 2 in
Holding Force (lbs) 153
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.500
T 2.000
PART # N42P1500250
Size (D x T) 1.5 in x 0.25 in
Diameter 1.5 in
Thickness 0.25 in
Holding Force (lbs) 34
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.500
T .250
PART # N42P1500750
Size (D x T) 1.5 in x 0.75 in
Diameter 1.5 in
Thickness 0.75 in
Holding Force (lbs) 93.15
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D 1.500
T .750
PART # N42P187060
Size (D x T) 0.187 in x 0.06 in
Diameter 0.187 in
Thickness 0.06 in
Holding Force (lbs) 0.72
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .187
T .060
PART # N42P187125
Size (D x T) 0.187 in x 0.125 in
Diameter 0.187 in
Thickness 0.125 in
Holding Force (lbs) 1.36
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .187
T .125
PART # N42P187187
Size (D x T) 0.187 in x 0.187 in
Diameter 0.187 in
Thickness 0.187 in
Holding Force (lbs) 1.83
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .187
T .187
PART # N42P187250
Size (D x T) 0.187 in x 0.25 in
Diameter 0.187 in
Thickness 0.25 in
Holding Force (lbs) 1.96
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .187
T .250
PART # N42P187375
Size (D x T) 0.187 in x 0.375 in
Diameter 0.187 in
Thickness 0.375 in
Holding Force (lbs) 1.99
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .187
T .375
PART # N42P187500
Size (D x T) 0.187 in x 0.5 in
Diameter 0.187 in
Thickness 0.5 in
Holding Force (lbs) 2.09
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .187
T .500
PART # N42P220100
Size (D x T) 0.22 in x 0.1 in
Diameter 0.22 in
Thickness 0.1 in
Holding Force (lbs) 1.51
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .220
T .100
PART # N42P220250
Size (D x T) 0.22 in x 0.25 in
Diameter 0.22 in
Thickness 0.25 in
Holding Force (lbs) 2.69
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .220
T .250
PART # N42P220500
Size (D x T) 0.22 in x 0.5 in
Diameter 0.22 in
Thickness 0.5 in
Holding Force (lbs) 3.02
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .220
T .500
PART # N42P250062
Size (D x T) 0.25 in x 0.062 in
Diameter 0.25 in
Thickness 0.062 in
Holding Force (lbs) 1.18
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .250
T .062
PART # N42P250100
Size (D x T) 0.25 in x 0.1 in
Diameter 0.25 in
Thickness 0.1 in
Holding Force (lbs) 1.76
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .250
T .100
PART # N42P2501000
Size (D x T) 0.25 in x 1 in
Diameter 0.25 in
Thickness 1 in
Holding Force (lbs) 4.13
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .250
T 1.000
PART # N42P250125
Size (D x T) 0.25 in x 0.125 in
Diameter 0.25 in
Thickness 0.125 in
Holding Force (lbs) 2.3
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .250
T .125
PART # N42P250187
Size (D x T) 0.25 in x 0.187 in
Diameter 0.25 in
Thickness 0.187 in
Holding Force (lbs) 2.99
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .250
T .187
PART # N42P250200
Size (D x T) 0.25 in x 0.2 in
Diameter 0.25 in
Thickness 0.2 in
Holding Force (lbs) 3.07
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .250
T .200
PART # N42P250250
Size (D x T) 0.25 in x 0.25 in
Diameter 0.25 in
Thickness 0.25 in
Holding Force (lbs) 3.35
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .250
T .250
PART # N42P250375
Size (D x T) 0.25 in x 0.375 in
Diameter 0.25 in
Thickness 0.375 in
Holding Force (lbs) 3.57
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .250
T .375
PART # N42P250500
Size (D x T) 0.25 in x 0.5 in
Diameter 0.25 in
Thickness 0.5 in
Holding Force (lbs) 3.87
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .250
T .500
PART # N42P250750
Size (D x T) 0.25 in x 0.75 in
Diameter 0.25 in
Thickness 0.75 in
Holding Force (lbs) 4.05
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .250
T .750
PART # N42P375500
Size (D x T) 0.375 in x 0.5 in
Diameter 0.375 in
Thickness 0.5 in
Holding Force (lbs) 8.50
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .375
T .500
PART # N42P312062
Size (D x T) 0.312 in x 0.062 in
Diameter 0.312 in
Thickness 0.062 in
Holding Force (lbs) 1.64
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .312
T .062
PART # N42P312125
Size (D x T) 0.312 in x 0.125 in
Diameter 0.312 in
Thickness 0.125 in
Holding Force (lbs) 3.35
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .312
T .125
PART # N42P312187
Size (D x T) 0.312 in x 0.187 in
Diameter 0.312 in
Thickness 0.187 in
Holding Force (lbs) 4.39
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .312
T .187
PART # N42P312250
Size (D x T) 0.312 in x 0.25 in
Diameter 0.312 in
Thickness 0.25 in
Holding Force (lbs) 5.09
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .312
T .250
PART # N42P312375
Size (D x T) 0.312 in x 0.375 in
Diameter 0.312 in
Thickness 0.375 in
Holding Force (lbs) 5.75
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .312
T .375
PART # N42P312500
Size (D x T) 0.312 in x 0.5 in
Diameter 0.312 in
Thickness 0.5 in
Holding Force (lbs) 6.17
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .312
T .500
PART # N42P320250
Size (D x T) 0.32 in x 0.25 in
Diameter 0.32 in
Thickness 0.25 in
Holding Force (lbs) 5.32
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .320
T .250
PART # N42P375060
Size (D x T) 0.375 in x 0.06 in
Diameter 0.375 in
Thickness 0.06 in
Holding Force (lbs) 2.10
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .375
T .060
PART # N42P375100
Size (D x T) 0.375 in x 0.1 in
Diameter 0.375 in
Thickness 0.1 in
Holding Force (lbs) 3.11
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .375
T .100
PART # N42P3751000
Size (D x T) 0.375 in x 1 in
Diameter 0.375 in
Thickness 1 in
Holding Force (lbs) 9.1
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .375
T 1.000
PART # N42P375125
Size (D x T) 0.375 in x 0.125 in
Diameter 0.375 in
Thickness 0.125 in
Holding Force (lbs) 4.41
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .375
T .125
PART # N42P3751500
Size (D x T) 0.375 in x 1.5 in
Diameter 0.375 in
Thickness 1.5 in
Holding Force (lbs) 9.2
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .375
T 1.500
PART # N42P375187
Size (D x T) 0.375 in x 0.187 in
Diameter 0.375 in
Thickness 0.187 in
Holding Force (lbs) 5.8
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .375
T .187
PART # N42P375200
Size (D x T) 0.375 in x 0.2 in
Diameter 0.375 in
Thickness 0.2 in
Holding Force (lbs) 6.02
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .375
T .200
PART # N42P375250
Size (D x T) 0.375 in x 0.25 in
Diameter 0.375 in
Thickness 0.25 in
Holding Force (lbs) 6.86
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .375
T .250
PART # N42P375375
Size (D x T) 0.375 in x 0.375 in
Diameter 0.375 in
Thickness 0.375 in
Holding Force (lbs) 7.96
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .375
T .375
PART # N42P375750
Size (D x T) 0.375 in x 0.75 in
Diameter 0.375 in
Thickness 0.75 in
Holding Force (lbs) 8.75
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .375
T .750
PART # N42P437062
Size (D x T) 0.437 in x 0.062 in
Diameter 0.437 in
Thickness 0.062 in
Holding Force (lbs) 2.58
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .437
T .062
PART # N42P437125
Size (D x T) 0.437 in x 0.125 in
Diameter 0.437 in
Thickness 0.125 in
Holding Force (lbs) 5.42
Material Neodymium
Grade N42
Package Quantity 1
Diagram View Spec Image
Neodymium Disc Magnets, N42, Plated quantity

D .437
T .125

Reviews

Reviews (0)

There are no reviews yet.

Add a Review

Size (D x T)	2.00 in x 0.50 in
Diameter	2.00 in
Thickness	0.50 in
Holding Force (lbs)	105
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.437 in x 0.187 in
Diameter	0.437 in
Thickness	0.187 in
Holding Force (lbs)	7.45
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.437 in x 0.25 in
Diameter	0.437 in
Thickness	0.25 in
Holding Force (lbs)	8.85
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.437 in x 0.375 in
Diameter	0.437 in
Thickness	0.375 in
Holding Force (lbs)	10.67
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.437 in x 0.5 in
Diameter	0.437 in
Thickness	0.5 in
Holding Force (lbs)	11.53
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.5 in x 0.06 in
Diameter	0.5 in
Thickness	0.06 in
Holding Force (lbs)	3.07
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.5 in x 1 in
Diameter	0.5 in
Thickness	1 in
Holding Force (lbs)	16.60
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.5 in x 0.125 in
Diameter	0.5 in
Thickness	0.125 in
Holding Force (lbs)	6.44
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.5 in x 1.5 in
Diameter	0.5 in
Thickness	1.5 in
Holding Force (lbs)	16.85
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.5 in x 0.187 in
Diameter	0.5 in
Thickness	0.187 in
Holding Force (lbs)	9.12
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image


D	.437
T	.187


D	.437
T	.250


D	.437
T	.375


D	.437
T	.500

Size (D x T)	0.5 in x 0.2 in
Diameter	0.5 in
Thickness	0.2 in
Holding Force (lbs)	9.49
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.5 in x 0.25 in
Diameter	0.5 in
Thickness	0.25 in
Holding Force (lbs)	10.88
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.5 in x 0.375 in
Diameter	0.5 in
Thickness	0.375 in
Holding Force (lbs)	13.43
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.5 in x 0.5 in
Diameter	0.5 in
Thickness	0.5 in
Holding Force (lbs)	14.60
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.5 in x 0.75 in
Diameter	0.5 in
Thickness	0.75 in
Holding Force (lbs)	15.5
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.625 in x 0.1 in
Diameter	0.625 in
Thickness	0.1 in
Holding Force (lbs)	6.13
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.625 in x 0.25 in
Diameter	0.625 in
Thickness	0.25 in
Holding Force (lbs)	15.3
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.75 in x 1 in
Diameter	0.75 in
Thickness	1 in
Holding Force (lbs)	36.6
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.75 in x 0.125 in
Diameter	0.75 in
Thickness	0.125 in
Holding Force (lbs)	9.76
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.75 in x 1.5 in
Diameter	0.75 in
Thickness	1.5 in
Holding Force (lbs)	37.7
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Neodymium Disc Magnets, N42, Plated

Strong N42 Neodymium Magnets Online

Specs

PART # N42P2000500

PART # N42P437187

PART # N42P437250

PART # N42P437375

PART # N42P437500

PART # N42P500060

PART # N42P5001000

PART # N42P500125

PART # N42P5001500

PART # N42P500187

PART # N42P500200

PART # N42P500250

PART # N42P500375

PART # N42P500500

PART # N42P500750

PART # N42P625100

PART # N42P625250

PART # N42P7501000

PART # N42P750125

PART # N42P7501500

PART # N42P750250

PART # N42P750375

PART # N42P750500

PART # N42P750625

PART # N42P750750

PART # N42P062375

PART # N42P1000062

PART # N42P625125

PART # N42P625187

PART # EP288

PART # EP307

PART # EP309

PART # EP325

PART # EP336

PART # EP344

PART # EP346

PART # EP347

PART # EP348

PART # EP350

PART # EP355

PART # EP358

PART # EP359

PART # EP360

PART # EP370

PART # EP372

PART # EP375

PART # EP376

PART # EP377

PART # EP406

PART # EP407

PART # EP528

PART # EP530

PART # EP559

PART # EP642

PART # EP645

PART # EP646

PART # EP653

PART # EP654

PART # N42P062062

PART # N42P062125

PART # N42P062187

PART # N42P062250

PART # N42P062500

PART # N42P10001000

PART # N42P1000125

PART # N42P10001500

PART # N42P1000187

PART # N42P1000250

PART # N42P1000375

PART # N42P1000500

PART # N42P1000625

PART # EP659

PART # N42P1000750

PART # N42P1000875

PART # N42P120060

PART # N42P1251000

PART # N42P125125

Size (D x T)	0.75 in x 0.25 in
Diameter	0.75 in
Thickness	0.25 in
Holding Force (lbs)	18.82
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.75 in x 0.375 in
Diameter	0.75 in
Thickness	0.375 in
Holding Force (lbs)	24
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.75 in x 0.5 in
Diameter	0.75 in
Thickness	0.5 in
Holding Force (lbs)	27.6
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.75 in x 0.625 in
Diameter	0.75 in
Thickness	0.625 in
Holding Force (lbs)	30.05
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.75 in x 0.75 in
Diameter	0.75 in
Thickness	0.75 in
Holding Force (lbs)	32.5
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.062 in x 0.375 in
Diameter	0.062 in
Thickness	0.375 in
Holding Force (lbs)	0.190
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	1.000 in x 0.062 in
Diameter	1.000 in
Thickness	0.062 in
Holding Force (lbs)	6.74
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.625 in x 0.125 in
Diameter	0.625 in
Thickness	0.125 in
Holding Force (lbs)	8.20
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.625 in x 0.187 in
Diameter	0.625 in
Thickness	0.187 in
Holding Force (lbs)	12.7
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image

Size (D x T)	0.787 in x 0.079 in
Diameter	0.787 in
Thickness	0.079 in
Holding Force (lbs)	6.21
Material	Neodymium
Grade	N42
Package Quantity	1
Diagram	View Spec Image
