Permanent Magnetic Drum Separator with Housing

Permanent Magnetic Drum Separator with Housing

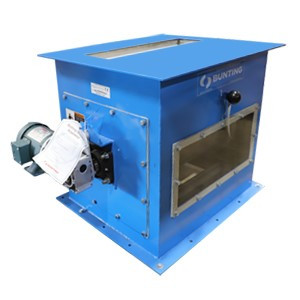

Permanent Magnetic Drum Separator with housing measuring 27" tall (A) x 22" long (C) x 26-1/2" wide (B). Unit is constructed with #11 gauge mild steel housing body, 1/4" thick x 2" wide predrilled top and bottom flanges, and #11 gauge Type 304 stainless steel diverter and adjustable infeed gate. Drum separator pulley measures 12" drum diameter x 24" face width. Drum includes a Type 304 stainless steel outer cover, (3) stainless steel wiper strip and high density Ceramic permanent magnetic energy source. Housing is manufactured per Bunting Magnetics Co. Utility Grade Spec. BPS-0050-000.

DRIVE SPEC:1/3 Hp, 230/460 V, 3 Ph, 60 Hz TEFC Direct Drive gearmotor for a constant 45 RPM speed.

CONTROL SPEC:Controls are not provided.
