Shallow, Ceramic Pot Magnets, Tapped

From $15.44 – $28.11

Clear
Quantity
View Quantity Discounts
SKU: N/A Category: Tags: , , ,

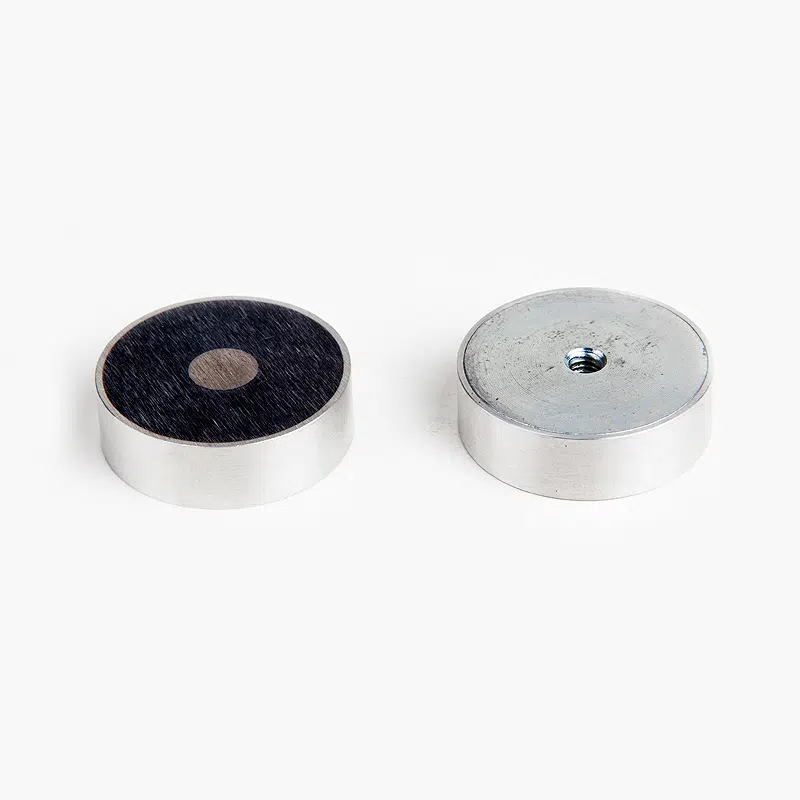

Ceramic Pot Magnets – Cup Magnets for Mounting

BuyMagnets.com offers shallow tapped ceramic pot magnets for applications where space is limited and a space-saving magnet solution is required. Our shallow tapped ceramic pot magnets are available in many different options of size, tap size, tap depth, and holding force. The ceramic magnets in this holding assembly provide excellent magnetic strength while resisting demagnetization. Shallow tapped ceramic pot magnets have a maximum operating temperature of 180°F. Temperatures higher than 180°F can cause the standard epoxy that holds the magnet material to fail.

Weight N/A
Dimensions N/A
Size (D x T)

0.875 in x 0.4375 in, 1.25 in x 0.375 in, 1.875 in x 0.375 in
Diameter

0.875 in, 1.25 in, 1.875 in
Thickness

0.375 in, 0.4375 in
Tap Size

#.3125-18, #10-32, #8-32
Tap Depth

0.3125, 0.375
Holding Force (lbs)

1.5, 12, 5
Material

Ceramic
Package Quantity

1

Specs

  • PART # BM2955T

    Size (D x T)1.875 in x 0.375 in
    Diameter1.875 in
    Thickness0.375 in
    Tap Size#.3125-18
    Tap Depth0.3125
    Holding Force (lbs)12
    MaterialCeramic
    Package Quantity1
    DiagramView Spec Image
    D1.875
    L.375

  • PART # BM2952T

    Size (D x T)0.875 in x 0.4375 in
    Diameter0.875 in
    Thickness0.4375 in
    Tap Size#8-32
    Tap Depth0.375
    Holding Force (lbs)1.5
    MaterialCeramic
    Package Quantity1
    DiagramView Spec Image
    D.875
    L.4375

  • PART # BM2953T

    Size (D x T)1.25 in x 0.375 in
    Diameter1.25 in
    Thickness0.375 in
    Tap Size#10-32
    Tap Depth0.3125
    Holding Force (lbs)5
    MaterialCeramic
    Package Quantity1
    DiagramView Spec Image
    D1.250
    L.375
