Ceramic Channel Magnets, BCH Series

From $5.77$18.19

Clear

Our BCH series of ceramic channel magnets amplifies the strength of ceramic magnets by utilizing a channel design. Not only does the channel design increase the magnetic strength, but it also protects the ceramic magnet from damage and extends its lifespan. BCH series magnets feature zinc plating and pre-drilled mounting holes at each end. Available in several different size, thickness, and strength options, BCH series ceramic channel magnets are useful for many different types of applications.

Weight N/A
Dimensions N/A
Size (H x L x W)

0.46 in x 12 in x 1.5 in, 0.46 in x 3 in x 1.5 in, 0.46 in x 6 in x 1.5 in, 0.46 in x 8 in x 1.5 in, 0.5 in x 2.75 in x 1.19 in

Length

12 in, 2.75 in, 3 in, 6 in, 8 in

Width

1.19 in, 1.5 in

Thickness

0.46 in, 0.5 in

Edge to Hole

0.19 in, 0.23 in

Holding Force (lbs)

120, 180, 35, 45, 90

Material

Ceramic

Package Quantity

1

Specs

  • PART # BCH8

    Size (H x L x W)0.46 in x 8 in x 1.5 in
    Length8 in
    Width1.5 in
    Thickness0.46 in
    Edge to Hole0.23 in
    Holding Force (lbs)120
    MaterialCeramic
    Package Quantity1

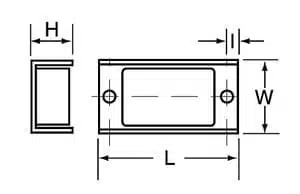

    DiagramView Spec Image
    L8.00
    W1.50
    H.46
    I.23
  • PART # BCH35

    Size (H x L x W)0.46 in x 3 in x 1.5 in
    Length3 in
    Width1.5 in
    Thickness0.46 in
    Edge to Hole0.23 in
    Holding Force (lbs)45
    MaterialCeramic
    Package Quantity1
    DiagramView Spec Image
    L3.00
    W1.50
    H.46
    I.23
  • PART # BCH12

    Size (H x L x W)0.46 in x 12 in x 1.5 in
    Length12 in
    Width1.5 in
    Thickness0.46 in
    Edge to Hole0.23 in
    Holding Force (lbs)180
    MaterialCeramic
    Package Quantity1
    DiagramView Spec Image
    L12.00
    W1.50
    H.46
    I.23
  • PART # BCH6

    Size (H x L x W)0.46 in x 6 in x 1.5 in
    Length6 in
    Width1.5 in
    Thickness0.46 in
    Edge to Hole0.23 in
    Holding Force (lbs)90
    MaterialCeramic
    Package Quantity1
    DiagramView Spec Image
    L6.00
    W1.50
    H.46
    I.23
  • PART # TS-3

    Size (H x L x W)0.5 in x 2.75 in x 1.19 in
    Length2.75 in
    Width1.19 in
    Thickness0.5 in
    Edge to Hole0.19 in
    Holding Force (lbs)35
    MaterialCeramic
    Package Quantity1
