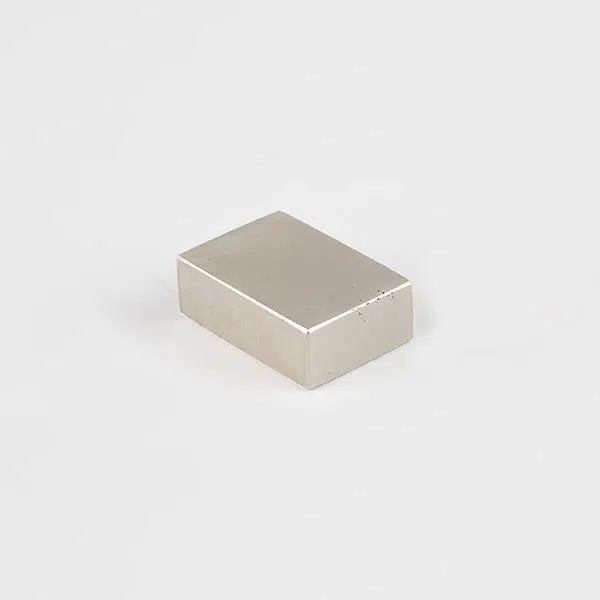

Neodymium Block Magnets, N42, Plated

From $0.37$35.00

Clear

BuyMagnets.com stocks fifteen different varieties of plated N42 neodymium block magnets. Each of these neodymium block magnets are plated with nickel to protect them from corrosion and physical wear, and they have a maximum operating temperature of 180°F. Available in many different sizes with holding forces ranging from 1.5lbs to 63.1lbs, we have the perfect N42 block magnet in stock for you.

Weight N/A
Dimensions N/A
Size (H x L x W)

0.079 in x 0.197 in x 0.197 in, 0.079 in x 0.393 in x 0.197 in, 0.079 in x 1.967 in x 0.984 in, 0.118 in x 0.118 in x 0.118 in, 0.118 in x 0.984 in x 0.394 in, 0.157 in x 3.937 in x 0.787 in, 0.197 in x 0.197 in x 0.197 in, 0.197 in x 0.393 in x 0.393 in, 0.197 in x 0.787 in x 0.393 in, 0.197 in x 0.984 in x 0.197 in, 0.197 in x 0.984 in x 0.393 in, 0.197 in x 1.967 in x 1.967 in, 0.315 in x 0.591 in x 0.591 in, 0.394 in x 1.575 in x 0.787 in, 0.394 in x 1.967 in x 0.984 in, 0.500 in x 2 in x 2 in, 0.500 x 2 x 2

Length

0.118 in, 0.197 in, 0.393 in, 0.591 in, 0.787 in, 0.984 in, 1.575 in, 1.967 in, 2, 2 in, 3.937 in

Width

0.118 in, 0.197 in, 0.393 in, 0.394 in, 0.591 in, 0.787 in, 0.984 in, 1.967 in, 2, 2 in

Thickness

0.079 in, 0.118 in, 0.157 in, 0.197 in, 0.315 in, 0.394 in, 0.500, 0.500 in

Holding Force (lbs)

0.75, 1.22, 1.5, 1.95, 10.14, 10.8, 11.2, 116.3, 12.1, 13.2, 14.9, 18.7, 18.82, 2.2, 2.52, 28.4, 3.5, 32.17, 39.9, 40.95, 43.9, 50.53, 63.1, 7.5, 7.87, 7.9, 8.57, 9, 9.31

Material

Neodymium

Grade

N42

Package Quantity

1

Specs

  • PART # NEB42P20020050

    Size (H x L x W)0.500 in x 2 in x 2 in
    Length2 in
    Width2 in
    Thickness0.500 in
    Holding Force (lbs)116.3
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L2
    W2
    T0.500
  • PART # EP319

    Size (H x L x W)0.197 in x 0.984 in x 0.197 in
    Length0.984 in
    Width0.197 in
    Thickness0.197 in
    Holding Force (lbs)9.31
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L0.984
    W0.197
    T0.197
  • PART # EP316

    Size (H x L x W)0.118 in x 0.118 in x 0.118 in
    Length0.118 in
    Width0.118 in
    Thickness0.118 in
    Holding Force (lbs)0.75
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L0.118
    W0.118
    T0.118
  • PART # EP381

    Size (H x L x W)0.197 in x 0.197 in x 0.197 in
    Length0.197 in
    Width0.197 in
    Thickness0.197 in
    Holding Force (lbs)2.52
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L0.197
    W0.197
    T0.197
  • PART # EP321

    Size (H x L x W)0.157 in x 3.937 in x 0.787 in
    Length3.937 in
    Width0.787 in
    Thickness0.157 in
    Holding Force (lbs)32.17
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L3.937
    W0.787
    T0.157
  • PART # EP200

    Size (H x L x W)0.197 in x 0.393 in x 0.393 in
    Length0.393 in
    Width0.393 in
    Thickness0.197 in
    Holding Force (lbs)7.87
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L0.393
    W0.393
    T0.197
  • PART # EP317

    Size (H x L x W)0.079 in x 0.197 in x 0.197 in
    Length0.197 in
    Width0.197 in
    Thickness0.079 in
    Holding Force (lbs)1.22
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L0.197
    W0.197
    T0.079
  • PART # EP320

    Size (H x L x W)0.197 in x 1.967 in x 1.967 in
    Length1.967 in
    Width1.967 in
    Thickness0.197 in
    Holding Force (lbs)40.95
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L1.967
    W1.967
    T0.197
  • PART # EP299

    Size (H x L x W)0.197 in x 0.984 in x 0.393 in
    Length0.984 in
    Width0.393 in
    Thickness0.197 in
    Holding Force (lbs)14.9
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L0.984
    W0.393
    T0.197
  • PART # EP648

    Size (H x L x W)0.394 in x 1.967 in x 0.984 in
    Length1.967 in
    Width0.984 in
    Thickness0.394 in
    Holding Force (lbs)63.1
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L1.967
    W0.984
    T0.394
  • PART # EP337

    Size (H x L x W)0.079 in x 1.967 in x 0.984 in
    Length1.967 in
    Width0.984 in
    Thickness0.079 in
    Holding Force (lbs)10.14
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L1.967
    W0.984
    T0.079
  • PART # EP352

    Size (H x L x W)0.394 in x 1.575 in x 0.787 in
    Length1.575 in
    Width0.787 in
    Thickness0.394 in
    Holding Force (lbs)50.53
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L1.575
    W0.787
    T0.394
  • PART # EP318

    Size (H x L x W)0.079 in x 0.393 in x 0.197 in
    Length0.393 in
    Width0.197 in
    Thickness0.079 in
    Holding Force (lbs)1.95
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L0.393
    W0.197
    T0.079
  • PART # EP293

    Size (H x L x W)0.197 in x 0.787 in x 0.393 in
    Length0.787 in
    Width0.393 in
    Thickness0.197 in
    Holding Force (lbs)13.2
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L0.787
    W0.393
    T0.197
  • PART # EP647

    Size (H x L x W)0.118 in x 0.984 in x 0.394 in
    Length0.984 in
    Width0.394 in
    Thickness0.118 in
    Holding Force (lbs)8.57
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L0.984
    W0.394
    T0.118
  • PART # EP383

    Size (H x L x W)0.315 in x 0.591 in x 0.591 in
    Length0.591 in
    Width0.591 in
    Thickness0.315 in
    Holding Force (lbs)18.82
    MaterialNeodymium
    GradeN42
    Package Quantity1
    DiagramView Spec Image
    L0.591
    W0.591
    T0.315
