Neodymium Block Magnets, N35, Plated

From $0.83$56.69

Clear

High-Energy Magnets for Increased Holding Power for Reduced Size and Weight. Choose the power you need for your project. Call for technical advice.

Click here to learn more about neodymium magnets and their uses.

Weight N/A
Dimensions N/A
Size (H x L x W)

0.1 in x 0.25 in x 0.25 in, 0.1 in x 0.4 in x 0.2 in, 0.25 in x 0.75 in x 0.5 in, 0.34 in x 0.75 in x 0.25 in, 0.41 in x 1 in x 0.48 in, 0.5 in x 0.5 in x 0.5 in, 0.5 in x 0.75 in x 0.25 in, 0.5 in x 1 in x 1 in, 0.5 in x 2 in x 1 in, 0.5 in x 2 in x 2 in

Length

0.25 in, 0.4 in, 0.5 in, 0.75 in, 1 in, 2 in

Width

0.2 in, 0.25 in, 0.48 in, 0.5 in, 1 in, 2 in

Thickness

0.1 in, 0.25 in, 0.34 in, 0.41 in, 0.5 in

Wt. (lbs)

0.002, 0.018, 0.024, 0.033, 0.069, 0.134, 0.269, 0.625

Holding Force (lbs)

1.4, 1.8, 10, 140, 15, 40, 7, 80

Material

Neodymium

Grade

N35

Package Quantity

1

Specs

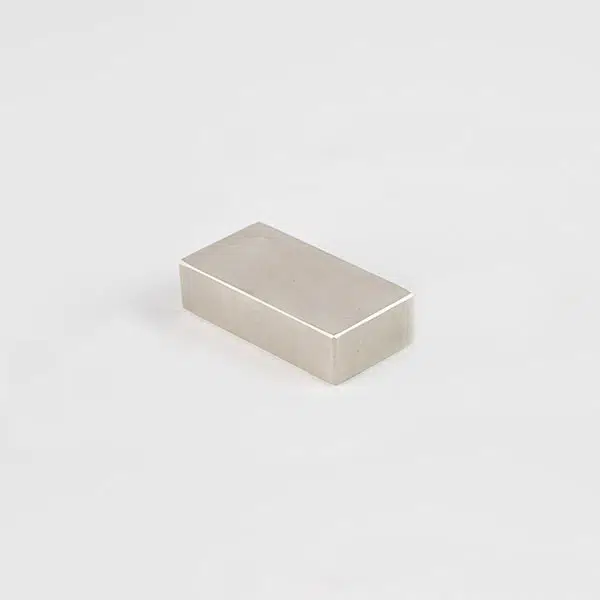

  • PART # NEB35P20010050

    Size (H x L x W)0.5 in x 2 in x 1 in
    Length2 in
    Width1 in
    Thickness0.5 in
    Wt. (lbs)0.002
    Holding Force (lbs)80
    MaterialNeodymium
    GradeN35
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    L2.000
    W1.000
    T.500
  • PART # NEB35P1004841

    Size (H x L x W)0.41 in x 1 in x 0.48 in
    Length1 in
    Width0.48 in
    Thickness0.41 in
    Wt. (lbs)0.002
    Holding Force (lbs)15
    MaterialNeodymium
    GradeN35
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    L1.000
    W.480
    T.410
  • PART # NEB35P755025

    Size (H x L x W)0.25 in x 0.75 in x 0.5 in
    Length0.75 in
    Width0.5 in
    Thickness0.25 in
    Wt. (lbs)0.002
    Holding Force (lbs)15
    MaterialNeodymium
    GradeN35
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    L.750
    W.500
    T.250
  • PART # NEB35P752550

    Size (H x L x W)0.5 in x 0.75 in x 0.25 in
    Length0.75 in
    Width0.25 in
    Thickness0.5 in
    Wt. (lbs)0.002
    Holding Force (lbs)7
    MaterialNeodymium
    GradeN35
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    L.750
    W.250
    T.500
  • PART # NEB35P252510

    Size (H x L x W)0.1 in x 0.25 in x 0.25 in
    Length0.25 in
    Width0.25 in
    Thickness0.1 in
    Wt. (lbs)0.002
    Holding Force (lbs)1.4
    MaterialNeodymium
    GradeN35
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    L.250
    W.250
    T.100
  • PART # NEB35P20020050

    Size (H x L x W)0.5 in x 2 in x 2 in
    Length2 in
    Width2 in
    Thickness0.5 in
    Wt. (lbs)0.002
    Holding Force (lbs)140
    MaterialNeodymium
    GradeN35
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    L2.000
    W2.000
    T.500
  • PART # NEB35P505050

    Size (H x L x W)0.5 in x 0.5 in x 0.5 in
    Length0.5 in
    Width0.5 in
    Thickness0.5 in
    Wt. (lbs)0.002
    Holding Force (lbs)10
    MaterialNeodymium
    GradeN35
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    Out of Stock
    L.500
    W.500
    T.500
  • PART # NEB35P752534

    Size (H x L x W)0.34 in x 0.75 in x 0.25 in
    Length0.75 in
    Width0.25 in
    Thickness0.34 in
    Wt. (lbs)0.002
    Holding Force (lbs)7
    MaterialNeodymium
    GradeN35
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    L.750
    W.250
    T.340
  • PART # NEB35P10010050

    Size (H x L x W)0.5 in x 1 in x 1 in
    Length1 in
    Width1 in
    Thickness0.5 in
    Wt. (lbs)0.002
    Holding Force (lbs)40
    MaterialNeodymium
    GradeN35
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    L1.000
    W1.000
    T.500
  • PART # NEB35P402010

    Size (H x L x W)0.1 in x 0.4 in x 0.2 in
    Length0.4 in
    Width0.2 in
    Thickness0.1 in
    Wt. (lbs)0.002
    Holding Force (lbs)1.8
    MaterialNeodymium
    GradeN35
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    L.400
    W.200
    T.100
