Magnetic Lifters

Heavy-Duty, Lifting Magnets

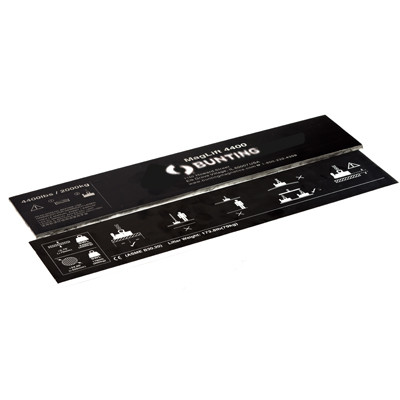

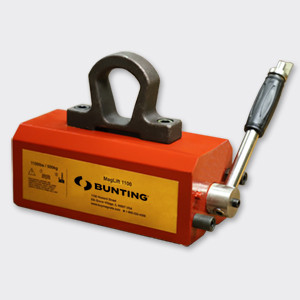

Bunting MagLifts are permanent magnetic lifters powered by blocks of high-energy neodymium magnetic material. Our Lift Magnets are great for lifting, loading, unloading and moving steel blocks and cylinders. A job that takes two men with hooks, chains or slings can be done with one hand using a Bunting® magnetic lifter. No more struggles to attach heavy or awkward loads. No more worries about the stability of the load once it is lifted. No factory, dock or warehouse should be without one! Choose between hand-controlled permanent magnetic lifters, and ML series magnetic lifters.  Parts for your lift magnets are also available, such as magnetic lifter handles, lifter locks, and lifter name plates.



Switching the magnet on/off is easily achieved by simply moving the handle. In the “on” position, the reversible magnetic block is in parallel with the static magnetic block so that a concentrated magnetic field is produced at the pole feet for lifting. In the “off” position, the reversible magnetic block is rotated through 180 degrees to provide a total magnetic short circuit within the lifter body. Permanent magnets and manual switching means no operating costs.

  • Hand-Controlled Permanent Magnetic Lifters

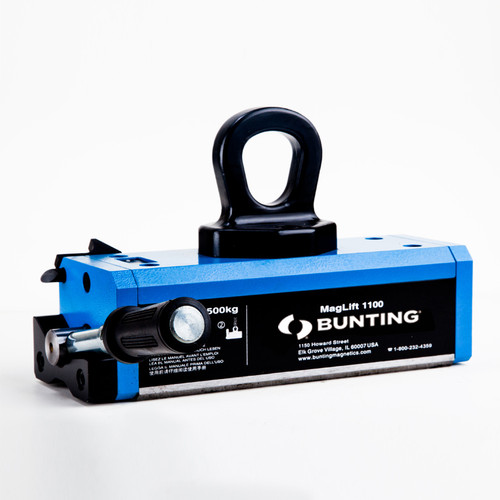

    Hand-Controlled Permanent Magnetic Lifters

    Permanent Lift Magnets from Bunting



    A Practical, Safe, Economic Solution



    Bunting’s Magnetic Lifters are a revolution in the magnetic handling of ferrous loads. We combine absolute compact dimensions, low weight, great power, and total work safety to deliver you a product with near zero operating costs and a quick return on investment.



    Magnetic lifters are an excellent choice for large and small shops alike, across a broad range of industries. These lifters are ideal for handling applications such as:



    • Workpieces in machine tools and oxygen cutting operations
    • Metal plates
    • Sheet and iron blocks in steel structural and naval works
    • Steel industries and distribution centers
    • Changing tooling in production
    • And more



    Magnetic lifters are an excellent fit in modern mechanical workshops. A single operator can handle the load, which is always anchored and lifted from the top. Magnetic lifters protect your material from deformation and damage, help you optimize use of your available workspace, and keep your employees and equipment in your facility safe from harm.



    Strength and Stability



    —Concentrated power allows flow to be channeled only where it’s needed, ensuring steady, optimal performance and total lack of magnetic dispersion while avoiding undesired attraction from adjacent loads.



    —Compact and sturdy design incorporates a double magnet circuit (rotor and stator) and revolutionary construction to create an incredible weight power ratio of up to 100 times the weight of the lifter body (ML1100).



    Safety Features
    • High-energy permanent magnets ensure great concentrated and steady power for an indefinite period.
    • The 3times safety factor of the recommended load to the test load ensures optimal working conditions even with substantial operating air gaps.
    • High magnetic strength of the lifter is shown by the lever’s strong resistance to activation when load conditions are not perfect.



    Bunting’s magnetic lifters are safe, economical, practical, and powerful. For more information, contact a sales representative today.



    Click to View Spec Image





    Choose Options
  • Magnetic Lifter Handles

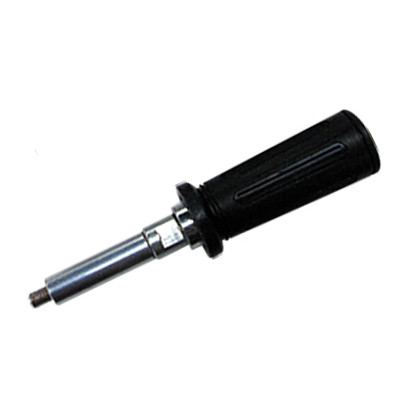

    Magnetic Lifter Handles

    Handles for Lifting Magnets



    Handles for magnetic lifters allow operators to control whether the magnets are stationed in an on or off position. As handles will receive natural wear and tear over time, Bunting offers a simple replacement for this essential part.

    Choose Options
!
//
