Power Supply, BPS3

From $1,041.48$12,729.26

Clear
SKU: N/A Category: Tag:

The BPS3 Automated Power Supply is designed to rapidly and cleanly cycle and release, making it an excellent power source for high-speed automated processes. The release cycle is completely automatic, eliminating the need for operator judgement even with manual switches. An adjustable timed pulse of reverse current to the magnet effectively releases the load. An SPST switch, limit switch, or PLC output may be used to operate the power supply. The BPS3 is ideal for robotics or “pick and place” applications. [new paragraph] All electromagnets require a power supply in order to operate correctly. Electromagnets must be able to release ferrous objects as readily as they attract and hold them. The ability to release comes from the power supply rendering a reverse current that ensures positive release of even those alloy steels that retain induced magnetism extremely well. All Bunting® Power Supplies are designed to provide D.C. power for industrial electromagnets. [new paragraph] Note: Total wattage of all magnets powered by a single Bunting Power Supply must not exceed the wattage rating of the Power Supply. For example; you can use five 3-watt magnets with a 15-watt Power Supply.

Click Here to view and download the Power Supply, BPS3 User Manual.

Weight N/A
Dimensions N/A
Size H x W x D

10x8x4, 12x10x5, 20x16x7, 24x20x9, 24x24x11

Watts

100, 1000, 15, 200, 2000, 300, 3000, 50, 500, 750

Input VAC

120/240, 240/480

Output VDC

110, 12

Package Quantity

1

Specs

  • PART # BPS3-2000-110

    Size H x W x D24x20x9
    Watts2000
    Input VAC240/480
    Output VDC110
    Package Quantity1
  • PART # BPS3-0750-110

    Size H x W x D20x16x7
    Watts750
    Input VAC240/480
    Output VDC110
    Package Quantity1
  • PART # BPS3-0050-110

    Size H x W x D12x10x5
    Watts50
    Input VAC240/480
    Output VDC110
    Package Quantity1
    Specs PDFView Spec PDF
  • PART # BPS3-3000-110

    Size H x W x D24x24x11
    Watts3000
    Input VAC240/480
    Output VDC110
    Package Quantity1
  • PART # BPS3-1000-110

    Size H x W x D20x16x7
    Watts1000
    Input VAC240/480
    Output VDC110
    Package Quantity1
  • PART # BPS3-0050-12

    Size H x W x D12x10x5
    Watts50
    Input VAC120/240
    Output VDC12
    Package Quantity1
    Specs PDFView Spec PDF
  • PART # BPS3-0100-12

    Size H x W x D12x10x5
    Watts100
    Input VAC120/240
    Output VDC12
    Package Quantity1
    Specs PDFView Spec PDF
  • PART # BPS3-0500-110

    Size H x W x D20x16x7
    Watts500
    Input VAC240/480
    Output VDC110
    Package Quantity1
    Specs PDFView Spec PDF
  • PART # BPS3-0015-12

    Size H x W x D10x8x4
    Watts15
    Input VAC120/240
    Output VDC12
    Package Quantity1
    Specs PDFView Spec PDF

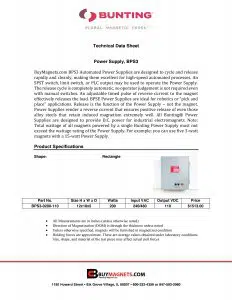

  • PART # BPS3-0200-110

    Size H x W x D12x10x5
    Watts200
    Input VAC240/480
    Output VDC110
    Package Quantity1

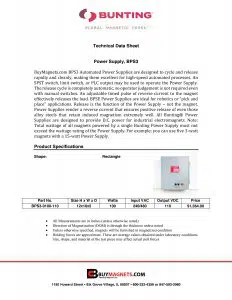

  • PART # BPS3-0100-110

    Size H x W x D12x10x5
    Watts100
    Input VAC240/480
    Output VDC110
    Package Quantity1
  • PART # BPS3-0300-110

    Size H x W x D12x10x5
    Watts300
    Input VAC240/480
    Output VDC110
    Package Quantity1
