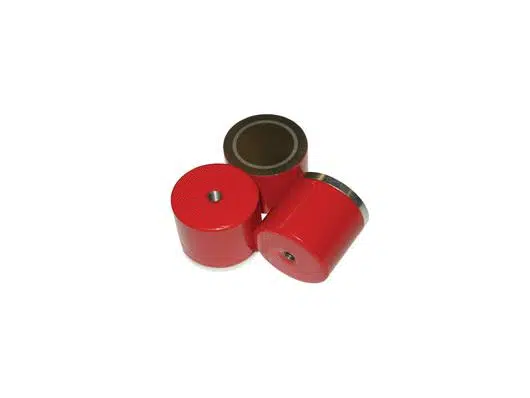

Alnico Pot Magnets, Deep

From $1.58$10.50

Clear
SKU: N/A Category: Tags: , ,

Alnico Holding Assemblies are well-suited for high-heat applications. Alnico magnets have the widest range of temperature stability of any standard magnetic material. At temperatures as high as 840°F, they maintain about 78% of their room-temperature magnetic properties. Alnico assemblies are strongly recommended for use in temperature ranges from 180-800°F. We recommend these magnets be mounted with nonferrous fasteners and insulated when installed in ferrous materials to avoid holding value drops of 20% or more.

Weight N/A
Dimensions N/A
Size (D x T)

0.394 in x 0.62 in, 0.5 in x 0.63 in, 0.689 in x 0.63 in, 0.807 in x 0.748 in, 1.063 in x 0.984 in, 1.378 in x 1.181 in

Diameter

0.394 in, 0.5 in, 0.689 in, 0.807 in, 1.063 in, 1.378 in

Thickness

0.62 in, 0.63 in, 0.748 in, 0.984 in, 1.181 in

Tap Size

M3, M6

Holding Force (lbs)

13.2, 2.2, 30.9, 4.4, 5.5, 8.8

Material

Alnico

Package Quantity

1

Specs

  • PART # MAG832N

    Size (D x T)0.807 in x 0.748 in
    Diameter0.807 in
    Thickness0.748 in
    Tap SizeM6
    Holding Force (lbs)8.8
    MaterialAlnico
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    D.807
    T.748
    MM6
  • PART # MAG833

    Size (D x T)1.063 in x 0.984 in
    Diameter1.063 in
    Thickness0.984 in
    Tap SizeM6
    Holding Force (lbs)13.2
    MaterialAlnico
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    D1.063
    T.984
    MM6
  • PART # MAG830

    Size (D x T)0.5 in x 0.63 in
    Diameter0.5 in
    Thickness0.63 in
    Tap SizeM3
    Holding Force (lbs)4.4
    MaterialAlnico
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    D.500
    T.630
    MM3
  • PART # MAG829

    Size (D x T)0.394 in x 0.62 in
    Diameter0.394 in
    Thickness0.62 in
    Tap SizeM3
    Holding Force (lbs)2.2
    MaterialAlnico
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    D.394
    T.620
    MM3
  • PART # MAG834

    Size (D x T)1.378 in x 1.181 in
    Diameter1.378 in
    Thickness1.181 in
    Tap SizeM6
    Holding Force (lbs)30.9
    MaterialAlnico
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    D1.378
    T1.181
    MM6
  • PART # MAG831

    Size (D x T)0.689 in x 0.63 in
    Diameter0.689 in
    Thickness0.63 in
    Tap SizeM6
    Holding Force (lbs)5.5
    MaterialAlnico
    Package Quantity1
    Specs PDFDL
    DiagramView Spec Image
    D.689
    T.630
    MM6
