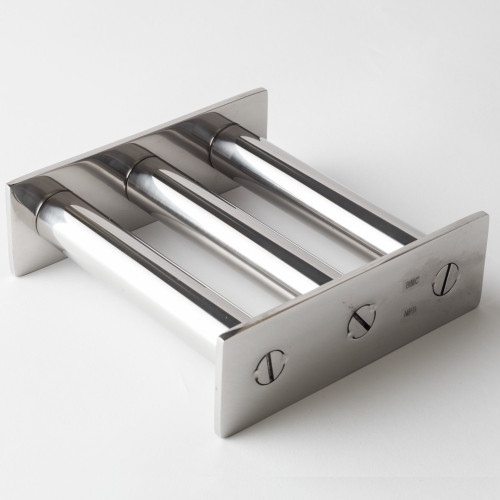

Neodymium Grate Magnets, 10,000 Gauss
Grate magnets are a simple and effective way to capture ferrous metal contamination within your product flow. Achieve your magnetic separation goals in a wide range of applications, including coffee grinders. By using an expertly configured, high intensity magnetic field, these grate magnets effectively trap and hold ferrous contamination, including fine ferrous particles, metal fragments, and small metal objects. Grate magnets are easy to install, and can also be simply laid inside hoppers, pits, chutes, bins, and other housings for the sake of easy access and cleaning. Constructed with stainless steel tubing and frames, grate magnets are welded into strong, durable units. The 10,000 Gauss neodymium grate magnet option has a pull strength of 11 lbs (with a ½” ferrous ball) and is available in both round and square shape options. BuyMagnets.com offers multiple lengths and widths of grate magnets in stock and ready to ship for your convenience.
-

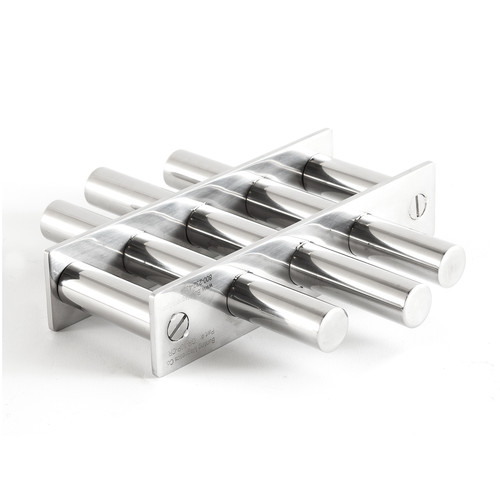

Neodymium Grate Magnets, 12,000 Gauss
Grate magnets provide a simple, effective solution for capturing ferrous metal contamination in many different magnetic separation applications, including coffee grinders. Grate magnets use a high intensity, expertly configured magnetic field to hold and trap ferrous contamination. The powerful magnetic force traps and holds small metal objects, metal fragments, and even very fine ferrous particles. Installing grate magnets is easy, and in some applications, they can simply be laid inside bins, chutes, hoppers, pits, and other housings to enable easy cleaning. Stainless steel tubing and frames are welded into strong, integral units. The 12,000 Gauss neodymium grate magnet option has a pull strength of 13.2lbs (with a ½” ferrous ball) and can be purchased in square and round options. BuyMagnets.com stocks multiple widths and lengths of grate magnets and provides fast shipping for your convenience.
Neodymium Power-Balanced Grate Magnets
Bunting® Grate Magnets provide a properly configured, high-density magnetic field to trap and hold ferrous fines, fragments, and small metal objects. Stainless steel tubing and frames are welded into strong, integral units. The average Gauss on the surface of the cartridge is 4,200 (max peak 4,400) with an average pull strength of 1.4lbs (with a 1/4" ferrous ball) and 5.4lbs (with a 1/2" ferrous ball). They can be installed – or simply laid – inside hoppers, housings, and bins – and easily removed for cleaning. Grates are built for low-abrasion applications and should measure at least twice the size of your outlet opening, so as not to restrict product flow.
