Ceramic Grate Magnet, Angular Baffle, Round
Ceramic grate magnets, or ceramic hopper magnets, are useful in many different magnetic separation applications. They use a high-density magnetic field that has been expertly configured for optimal removal of ferrous metal contamination. Ceramic grate magnets excel at removing ferrous fines, fragments, and small metal objects as product flows through them.
This design incorporates an angular baffle to help divert product over the round magnetic cartridges. To use ceramic grate magnets, install or simply place them inside hoppers, housings, and bins. From there, all you need to do is remove them for regularly scheduled cleanings according to your facility’s needs.
The average Gauss on the surface of the cartridge is 1,975, with an average pull strength of 1.1lbs (using a ½” ferrous ball). Stainless steel tubing and frames are welded into strong, integral units that are built to last. Ceramic grate magnets are capable of withstanding temperatures of up to 350 °F. Grates are built for low-abrasion applications and should measure at least twice the size of your outlet opening, so as not to restrict product flow.
-

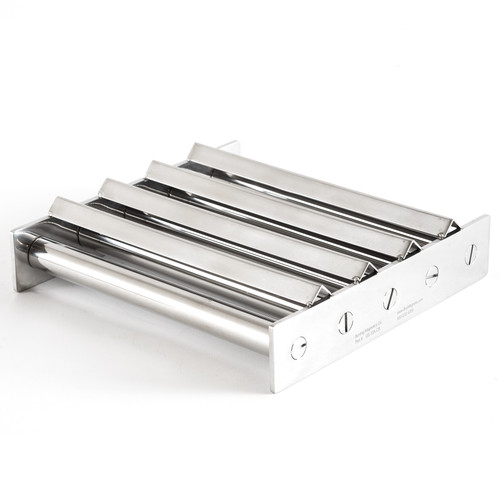

Ceramic Grate Magnet, Angular Baffle, Square
Ceramic grate magnets, or ceramic hopper magnets, are a simple and effective way to remove ferrous metal from your product flow. Achieve your magnetic separation goals in a wide range of applications, including coffee grinders. Every ceramic grate magnet from BuyMagnets.com has an expertly configured magnetic field that excels at removing ferrous metal contamination. Ceramic grate magnets are designed to attract and hold all types of ferrous metal contamination, including larger metal objects, medium sized fragments, and impossibly small fine ferrous particles.
The design of this ceramic grate magnet uses a baffle to divert material over the square shaped magnetic cartridges. Simply install or place the ceramic grate magnet in your bin, housing, or hopper, then remove as necessary for cleaning.
The average Gauss on the surface of the cartridge is 1,975, with an average pull strength of 1.1lbs (using a ½” ferrous ball). Stainless steel tubing and frames are welded into strong, integral units that are built to last. Ceramic grate magnets are capable of withstanding temperatures of up to 350 °F. Grates are built for low-abrasion applications and should measure at least twice the size of your outlet opening, so as not to restrict product flow.
-

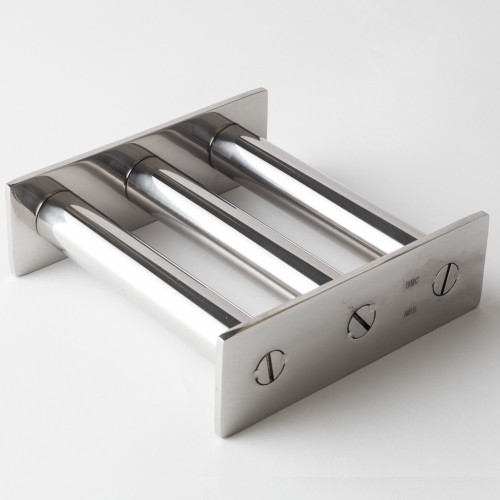

Ceramic Grate Magnet, No Baffle, Rectangle
Ceramic grate magnets, or ceramic hopper magnets, can be used in many different magnetic separation applications, including coffee grinders. Our experts have designed these ceramic grate magnets with a specifically configured magnetic field for optimum removal of ferrous metal contamination. The result is a grate magnet that can effectively trap and hold all sorts of different contaminant types, including fine particles, fragments, and larger ferrous metal objects.
With a rectangular design, these ceramic grate magnets are easy to install or simply place in hoppers, housings, and bins. From there, all you need to do is remove and clean according to your application needs.
The average Gauss on the surface of the cartridge is 1,975, with an average pull strength of 1.1lbs (using a ½” ferrous ball). Stainless steel tubing and frames are welded into strong, integral units that are built to last. Ceramic grate magnets are capable of withstanding temperatures of up to 350 °F. Grates are built for low-abrasion applications and should measure at least twice the size of your outlet opening, so as not to restrict product flow.
-

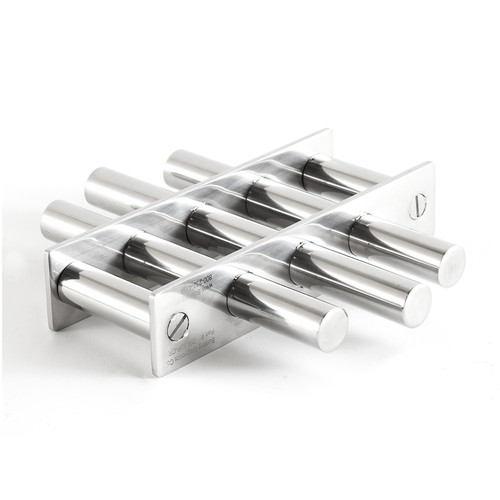

Ceramic Grate Magnet, No Baffle, Round
You can use ceramic grate magnets, also known as ceramic hopper magnets, to achieve your magnetic separation goals in a wide range of applications. BuyMagnets.com sells ceramic grate magnets with a carefully configured magnetic field that traps and removes all types of ferrous metal contamination. As product flows through the ceramic grate magnet, its powerful magnetic field traps and removes small metal objects, metal shards and fragments, and even very fine particles.
With a round design, these ceramic grate magnets are easy to install or simply place in housings, bins, and hoppers. After that, all you need to do in the future is remove and clean according to your application needs.
The average Gauss on the surface of the cartridge is 1,975, with an average pull strength of 1.1lbs (using a ½” ferrous ball). Stainless steel tubing and frames are welded into strong, integral units that are built to last. Ceramic grate magnets are capable of withstanding temperatures of up to 350 °F. Grates are built for low-abrasion applications and should measure at least twice the size of your outlet opening, so as not to restrict product flow.
-
Ceramic Grate Magnet, No Baffle, Square
Ceramic grate magnets, also known as ceramic hopper magnets, are an excellent way to combat ferrous metal contamination in your product flow. These magnets are configured to maximize removal of ferrous metal contamination using their high-intensity magnetic field. Ceramic grate magnets trap and hold ferrous fines, fragments, and small metal objects as product flows through them.
With a square design, these ceramic grate magnets are easy to install or simply place in hoppers, housings, and bins. From there, all you need to do is remove and clean according to your application needs.
The average Gauss on the surface of the cartridge is 1,975, with an average pull strength of 1.1lbs (using a ½” ferrous ball). Stainless steel tubing and frames are welded into strong, integral units that are built to last. Ceramic grate magnets are capable of withstanding temperatures of up to 350 °F. Grates are built for low-abrasion applications and should measure at least twice the size of your outlet opening, so as not to restrict product flow.
Ceramic Grate Magnets
Ceramic (F) Grate Magnets / Ceramic Hopper Magnets provide a properly configured, high-density magnetic field to trap and hold ferrous fines, fragments, and small metal objects as product flows through them. Stainless steel tubing and frames are welded into strong, integral units. The average Gauss on the surface of the cartridge is 1,975, with an average pull strength of 1.1lbs (with a 1/2" ferrous ball). They can be installed – or simply laid – inside hoppers, housings, and bins, and easily removed for cleaning. Grates are built for low-abrasion applications and should measure at least twice the size of your outlet opening, so as not to restrict product flow.
