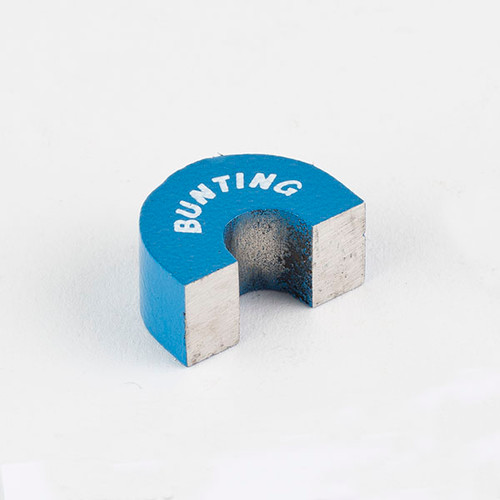

Alnico Horseshoe Magnets, Wide, Grade 5
Wide grade 5 alnico horseshoe magnets offer a holding force of 3.5lbs. The wide design means that the two magnetic poles of the horseshoe (north and south) are positioned farther away from each other and that the magnetic force between the two poles is less concentrated. This design is ideal for applications where higher strength may not be desired, but customers still wish to use a horseshoe shape.
-
Alnico U-Shaped Magnet, Block, Grade 5
For customers who wish to combine a classic block shape, the anisotropic characteristics of grade 5 alnico, and the intense strength of a u-shaped design, BuyMagnets.com offers a magnet that checks every box. The u-shape design of this magnet concentrates strength between the north and south poles of the grade 5 alnico magnetic material, amplifying the magnetic field and achieving a holding force of 6.5lbs.
-

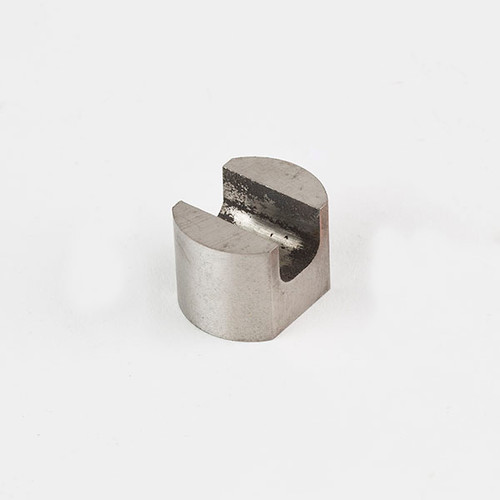

Alnico U-Shaped Magnet, Flat Lateral Surfaces, Gra
This grade 5 alnico material is anisotropic, meaning it has a preferred direction of orientation. It has a holding force of 6lbs that is a result of its u-shaped design. By incorporating a u-shape, magnetic power is concentrated between the two poles of the magnet, resulting in highly increased strength compared to a bar magnet of similar material. The flat lateral surface makes it well suited to applications that require this shape.
-

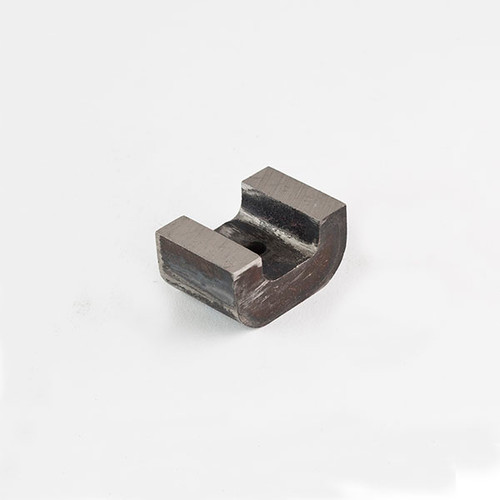

Alnico U-Shaped Magnet, Round Base, Grade 5
The unique round base of this grade 5 alnico magnet makes it ideal for applications requiring this uncommon shape. By incorporating a u-shape design, magnetic power is concentrated between the two poles of the magnet in order to achieve an intensified magnetic field—and greater strength as a result. This magnet features a holding force of 19lbs and a maximum operating temperature of 1000 °F.
-

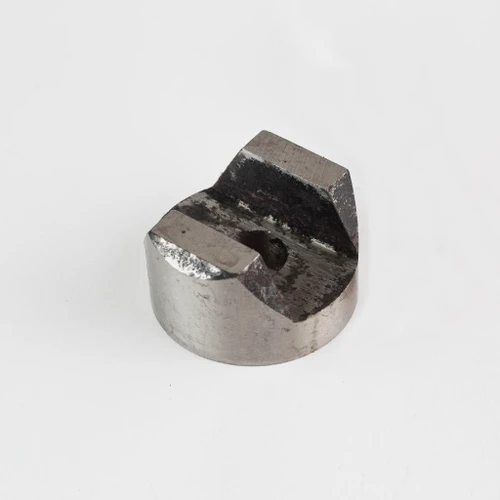

Alnico U-Shaped Magnet, Round, Bevelled Cutout, Gr
BuyMagnets.com offers round u-shaped grade 5 alnico magnets with a beveled cutout design in three different varieties. The three holding strengths available are 1.545lbs, 4.189lbs, and 7.496lbs. All alnico magnets in this design category are compact and lightweight, with the heaviest weighing just .110lbs. These magnets have a maximum operating temperature of 1000 °F. The combination of a round shape and a beveled cutout makes them ideal for applications requiring these design elements.
-

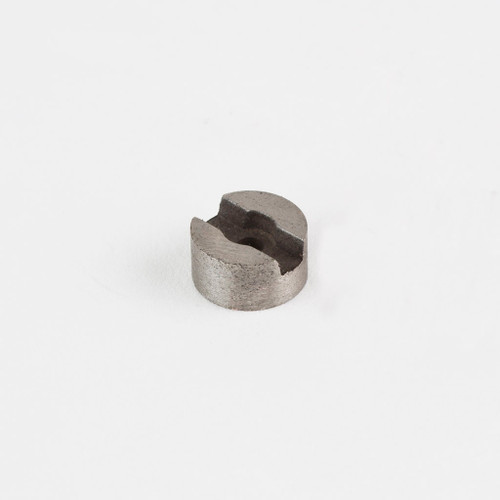

Alnico U-Shaped Magnet, Square Cutout, Grade 2
Grade 2 alnico magnets from BuyMagnets.com are available in a low profile, u-shaped design that includes a square cutout, facilitating its use in various applications. There are two varieties of this magnet available, and both harness the u-shaped design to increase their magnetic field strength. Both varieties have a maximum operating temperature of 1000 °F. Both options have a holding force of 0.438 lbs. Both options are extremely small and lightweight, weighing .004lbs and .005lbs each.
-

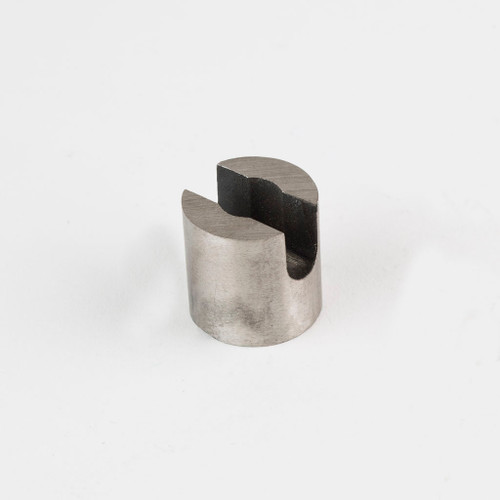

Alnico U-Shaped Magnet, Wide Core, Grade 5
BuyMagnets.com offers grade 5 alnico magnets that include both a wide core and a u-shaped construction as part of their design. The u-shape design places the north and south magnetic poles closely together, which intensifies the magnetic field and increases the magnet’s strength as a result. The wide core also caters to unique design requirements in order to best serve our customers’ applications. These magnets have a maximum operating temperature of 1000 °F.

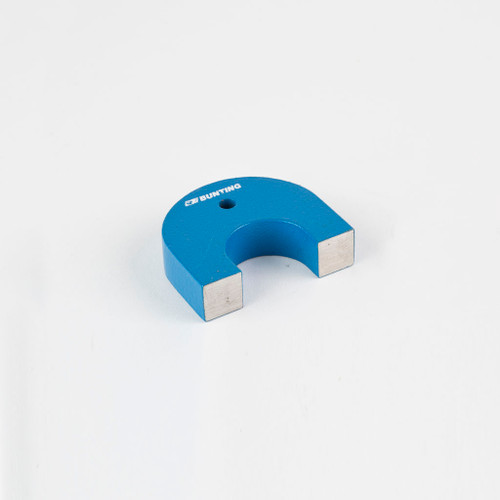

Alnico Horseshoe Magnets
Alnico horseshoe magnets are designed to position the north and south poles of a magnet closely together, creating a powerful magnetic field between the two poles. This allows them to achieve high holding strengths and concentrate their magnetic power. Additionally, the horseshoe design protects magnets from becoming demagnetized. BuyMagnets.com stocks classic shapes of alnico horseshoe magnets as well as alnico U-shaped magnets.
