Rectangular Magnetic Chucks

From $375.25 – $1,016.28

Know your SKU?

Size (H x L x W)

Length

Width

Height

Pitch
Clear

Quantity
View Quantity Discounts

SKU: N/A Category: Magnetic Chucks Tag: Tools

Description
Additional information

If you are searching for an alternative to traditional work holding machinery, consider rectangular magnetic chucks from BuyMagnets.com. These rectangular magnetic chucks harness the power of permanent magnets to securely clamp and hold work pieces in place. Operation of magnetic chucks is simple—all you need to do is use the turn key mechanism to switch the magnetic chuck from “off” to “on.” This activates the permanent magnets within the confines of the chuck and allows their magnetic flux to extend out of the magnetic chuck’s housing.

Once the magnetic chuck is turned on, the magnets within become aligned with the top plate and the magnetic flux extends upward. The powerful magnetic field can now instantly attract and hold any ferrous work piece placed on the chuck’s surface. Once the piece no longer needs to be held in place, the magnetic chuck can be switched to “off” again, and the piece will instantly be released as the magnetic field holding it in place is no longer active. This makes removal quick and easy.

In comparison to traditional work holding devices, magnetic chucks offer greater versatility, improved safety, and intense precision. Because the same magnetic chuck can be used to automatically secure many different shapes and sizes of work pieces, using magnetic chucks saves operation costs, equipment costs, and operation time.

BuyMagnets.com offers two pitch options for our circular magnetic chucks.

Our standard pitch option is suitable for workpieces above 3mm.

Our fine pole pitch option is suitable for smaller or thinner workpieces below 3mm and helps to avoid distortion in thinner parts.

Rectangular magnetic chucks from BuyMagnets.com are available in several different size options to best suit your needs.

Weight	N/A
Dimensions	N/A
Size (H x L x W)	1.89 in x 11.811 in x 5.906 in, 1.89 in x 13.78 in x 5.906 in, 1.89 in x 6.89 in x 3.937 in, 1.89 in x 9.843 in x 4.921 in, 2.087 in x 17.717 in x 5.906 in
Length	11.811 in, 13.78 in, 17.717 in, 6.89 in, 9.843 in
Width	3.937 in, 4.921 in, 5.906 in
Height	1.89 in, 2.087 in
Pitch	Fine Pole, Standard
Holding Force (lbs)	73.8
Package Quantity	1

Specs

PART # MC-300-150-S-AA
Size (H x L x W) 1.89 in x 11.811 in x 5.906 in
Length 11.811 in
Width 5.906 in
Height 1.89 in
Pitch Fine Pole
Holding Force (lbs) 73.8
Package Quantity 1

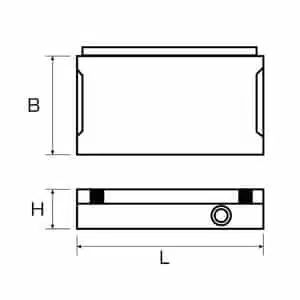

Diagram View Spec Image

Rectangular Magnetic Chucks quantity
