Neodymium Magnets

Filter Results

Strong, Rare Earth Neodymium Magnets Online
Neodymium magnets, a member of the rare earth magnet family, are well known for being the strongest magnets in the world. These magnets have a high resistance to demagnetization are plated (typically with nickel) to protect them from corrosion and chipping. Neodymium magnets are used in an enormous range of applications, including electronics, healthcare, industrial applications, clamps, magnetic separation equipment, and more. BuyMagnets.com offers neodymium magnets in over 250 different shapes, sizes, and strengths. Shop our large selection including N42 Neodymium Magnets, N52 Neo Magnets, N55 Neodymium Magnets, Neodymium Block Magnets, Neodymium Disc Magnets, Bonded Neodymium Magnets, Pot Magnets, High-Temp Magnets, and much more

Showing all 7 results

  • Neodymium Assemblies, Untapped

    $3.18 – $4.13
    Size (D x T) 2 options

    0.984 in x 0.315 in

    • SKU EP616-PLAIN
    • Size (D x T) 0.984 in x 0.315 in
    • Diameter 0.984 in
    • Thickness 0.315 in
    • Holding Force (lbs) 34

    1.26 in x 0.315 in

    • SKU EP615-PLAIN
    • Size (D x T) 1.26 in x 0.315 in
    • Diameter 1.26 in
    • Thickness 0.315 in
    • Holding Force (lbs) 26.5
  • neodymium assemblies, 3 pole

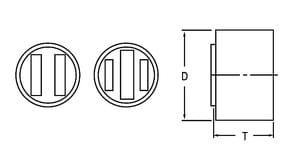

    Neodymium Assemblies, 2-Pole and 3-Pole

    $13.88 – $37.03
    Size (D x T) 7 options

    0.625 in x 0.5 in

    View Product Specs
    D.625
    T.500
    • SKU BM2031RE
    • Size (D x T) 0.625 in x 0.5 in
    • Diameter 0.625 in
    • Thickness 0.5 in
    • No. Poles 3
    • Holding Force (lbs) 19.3

    0.75 in x 0.5 in

    View Product Specs
    D.750
    T.500
    • SKU BM2032RE
    • Size (D x T) 0.75 in x 0.5 in
    • Diameter 0.75 in
    • Thickness 0.5 in
    • No. Poles 3
    • Holding Force (lbs) 34.6

    1.25 in x 0.5 in

    View Product Specs
    D1.250
    T.500
    • SKU BM2034RE
    • Size (D x T) 1.25 in x 0.5 in
    • Diameter 1.25 in
    • Thickness 0.5 in
    • No. Poles 3
    • Holding Force (lbs) 85

    0.25 in x 0.5 in

    View Product Specs
    D.250
    T.500
    • SKU BM2021RE
    • Size (D x T) 0.25 in x 0.5 in
    • Diameter 0.25 in
    • Thickness 0.5 in
    • No. Poles 2
    • Holding Force (lbs) 2

    0.5 in x 0.5 in

    View Product Specs
    D.500
    T.500
    • SKU BM2023RE
    • Size (D x T) 0.5 in x 0.5 in
    • Diameter 0.5 in
    • Thickness 0.5 in
    • No. Poles 2
    • Holding Force (lbs) 10.4

    0.375 in x 0.5 in

    View Product Specs
    D.375
    T.500
    • SKU BM2022RE
    • Size (D x T) 0.375 in x 0.5 in
    • Diameter 0.375 in
    • Thickness 0.5 in
    • No. Poles 2
    • Holding Force (lbs) 5.5

    1 in x 0.5 in

    View Product Specs
    D1.000
    T.500
    • SKU BM2033RE
    • Size (D x T) 1 in x 0.5 in
    • Diameter 1 in
    • Thickness 0.5 in
    • No. Poles 3
    • Holding Force (lbs) 55.5

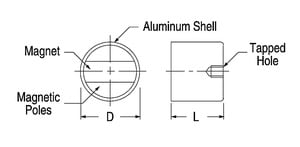

  • Neodymium Assemblies, Center Tapped

    $1.80 – $28.77
    Size (D x T) 5 options

    0.625 in x 0.625 in

    View Product Specs
    D.625
    L.625
    • SKU BM2006
    • Size (D x T) 0.625 in x 0.625 in
    • Diameter 0.625 in
    • Thickness 0.625 in
    • Tap Size #.25-20
    • Tap Depth 0.203
    • Holding Force (lbs) 14

    0.5 in x 0.469 in

    View Product Specs
    D.500
    L.469
    • SKU BM2004
    • Size (D x T) 0.5 in x 0.469 in
    • Diameter 0.5 in
    • Thickness 0.469 in
    • Tap Size #10-32
    • Tap Depth 0.203
    • Holding Force (lbs) 6

    1 in x 1 in

    View Product Specs
    D1.000
    L1.000
    • SKU BM2012
    • Size (D x T) 1 in x 1 in
    • Diameter 1 in
    • Thickness 1 in
    • Tap Size #.25-20
    • Tap Depth 0.234
    • Holding Force (lbs) 33

    0.875 in x 0.813 in

    View Product Specs
    D.875
    L.813
    • SKU BM2010
    • Size (D x T) 0.875 in x 0.813 in
    • Diameter 0.875 in
    • Thickness 0.813 in
    • Tap Size #.25-20
    • Tap Depth 0.234
    • Holding Force (lbs) 29

    0.744 in x 0.315 in

    View Product Specs
    D.744
    L.315
    • SKU EP606
    • Size (D x T) 0.744 in x 0.315 in
    • Diameter 0.744 in
    • Thickness 0.315 in
    • Tap Size M5
    • Tap Depth 0.188
    • Holding Force (lbs) 20.3

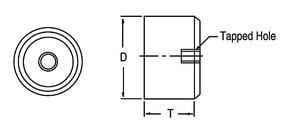

  • Neodymium Assemblies, Concentric Tapped

    $20.83 – $78.69
    Size (D x T) 6 options

    1.375 in x 0.5 in

    View Product Specs
    D1.375
    T.500
    • SKU BM2107RE
    • Size (D x T) 1.375 in x 0.5 in
    • Diameter 1.375 in
    • Thickness 0.5 in
    • Tap Size #.3125-18
    • Holding Force (lbs) 115

    0.375 in x 0.5 in

    View Product Specs
    D.375
    T.500
    • SKU BM2101RE
    • Size (D x T) 0.375 in x 0.5 in
    • Diameter 0.375 in
    • Thickness 0.5 in
    • Tap Size #8-32
    • Holding Force (lbs) 5.3

    0.5 in x 0.5 in

    View Product Specs
    D.500
    T.500
    • SKU BM2102RE
    • Size (D x T) 0.5 in x 0.5 in
    • Diameter 0.5 in
    • Thickness 0.5 in
    • Tap Size #10-32
    • Holding Force (lbs) 14

    0.625 in x 0.5 in

    View Product Specs
    D.625
    T.500
    • SKU BM2103RE
    • Size (D x T) 0.625 in x 0.5 in
    • Diameter 0.625 in
    • Thickness 0.5 in
    • Tap Size #10-32
    • Holding Force (lbs) 23

    0.75 in x 0.5 in

    View Product Specs
    D.750
    T.500
    • SKU BM2104RE
    • Size (D x T) 0.75 in x 0.5 in
    • Diameter 0.75 in
    • Thickness 0.5 in
    • Tap Size #10-32
    • Holding Force (lbs) 36

    1 in x 0.5 in

    View Product Specs
    D1.000
    T.500
    • SKU BM2105RE
    • Size (D x T) 1 in x 0.5 in
    • Diameter 1 in
    • Thickness 0.5 in
    • Tap Size #.25-20
    • Holding Force (lbs) 58

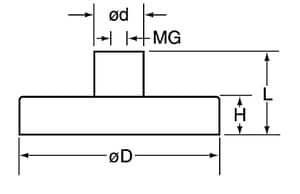

  • Neodymium Hook Magnets, BTN Series

    $2.69 – $12.54
    Size (D x T) 8 options

    0.63 in x 0.18 in

    View Product Specs
    D.63
    d.24
    L.45
    H.18
    MGM4
    • SKU BTN16
    • Size (D x T) 0.63 in x 0.18 in
    • Diameter 0.63 in
    • Inside Diameter 0.24 in
    • Length 0.45 in
    • Thickness 0.18 in
    • Tap Size M4
    • Holding Force (lbs) 21.4

    0.24 in x 0.18 in

    View Product Specs
    D.24
    d.24
    L.45
    H.18
    MGM3
    • SKU BTN6
    • Size (D x T) 0.24 in x 0.18 in
    • Diameter 0.24 in
    • Inside Diameter 0.24 in
    • Length 0.45 in
    • Thickness 0.18 in
    • Tap Size M3
    • Holding Force (lbs) 1.1

    0.98 in x 0.28 in

    View Product Specs
    D.98
    d.31
    L.55
    H.28
    MGM4
    • SKU BTN25
    • Size (D x T) 0.98 in x 0.28 in
    • Diameter 0.98 in
    • Inside Diameter 0.31 in
    • Length 0.55 in
    • Thickness 0.28 in
    • Tap Size M4
    • Holding Force (lbs) 45

    0.51 in x 0.18 in

    View Product Specs
    D.51
    d.24
    L.45
    H.18
    MGM3
    • SKU BTN13
    • Size (D x T) 0.51 in x 0.18 in
    • Diameter 0.51 in
    • Inside Diameter 0.24 in
    • Length 0.45 in
    • Thickness 0.18 in
    • Tap Size M3
    • Holding Force (lbs) 13.5

    0.79 in x 0.24 in

    View Product Specs
    D.79
    d.31
    L.51
    H.24
    MGM4
    • SKU BTN20
    • Size (D x T) 0.79 in x 0.24 in
    • Diameter 0.79 in
    • Inside Diameter 0.31 in
    • Length 0.51 in
    • Thickness 0.24 in
    • Tap Size M4
    • Holding Force (lbs) 31.5

    1.26 in x 0.28 in

    View Product Specs
    D1.26
    d.39
    L.61
    H.28
    MGM5
    • SKU BTN32
    • Size (D x T) 1.26 in x 0.28 in
    • Diameter 1.26 in
    • Inside Diameter 0.39 in
    • Length 0.61 in
    • Thickness 0.28 in
    • Tap Size M5
    • Holding Force (lbs) 78.7

    0.31 in x 0.18 in

    View Product Specs
    D.31
    d.24
    L.45
    H.18
    MGM3
    • SKU BTN8
    • Size (D x T) 0.31 in x 0.18 in
    • Diameter 0.31 in
    • Inside Diameter 0.24 in
    • Length 0.45 in
    • Thickness 0.18 in
    • Tap Size M3
    • Holding Force (lbs) 2.9

    0.39 in x 0.18 in

    View Product Specs
    D.39
    d.24
    L.45
    H.18
    MGM3
    • SKU BTN10
    • Size (D x T) 0.39 in x 0.18 in
    • Diameter 0.39 in
    • Inside Diameter 0.24 in
    • Length 0.45 in
    • Thickness 0.18 in
    • Tap Size M3
    • Holding Force (lbs) 5.6
  • neodymium pot magnet, bn6 series, countersunk

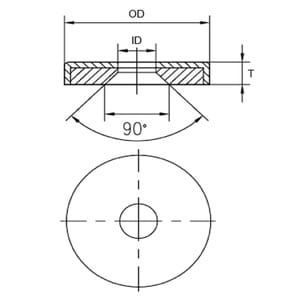

    Neodymium Pot Magnets, BN6 Series, Countersunk

    $1.79 – $6.31
    Size (D x T) 4 options

    0.985 in x 0.275 in

    View Product Specs
    OD.985
    ID.177
    T.275
    • SKU BN6-25
    • Size (D x T) 0.985 in x 0.275 in
    • Diameter 0.985 in
    • Inside Diameter 0.177 in
    • Thickness 0.275 in
    • Screw Size #6
    • Holding Force (lbs) 35.9

    1.26 in x 0.275 in

    View Product Specs
    OD1.260
    ID.216
    T.275
    • SKU BN6-32
    • Size (D x T) 1.26 in x 0.275 in
    • Diameter 1.26 in
    • Inside Diameter 0.216 in
    • Thickness 0.275 in
    • Screw Size #8
    • Holding Force (lbs) 69.7

    0.787 in x 0.236 in

    View Product Specs
    OD.787
    ID.177
    T.236
    • SKU BN6-20
    • Size (D x T) 0.787 in x 0.236 in
    • Diameter 0.787 in
    • Inside Diameter 0.177 in
    • Thickness 0.236 in
    • Screw Size #6
    • Holding Force (lbs) 23.6

    0.63 in x 0.177 in

    View Product Specs
    OD.630
    ID.137
    T.177
    • SKU BN6-16
    • Size (D x T) 0.63 in x 0.177 in
    • Diameter 0.63 in
    • Inside Diameter 0.137 in
    • Thickness 0.177 in
    • Screw Size #4
    • Holding Force (lbs) 16.8
  • neodymium pot magnet

    Neodymium Pot Magnets, BNA Series, Countersunk

    $1.79 – $58.41
    Size (D x T) 9 options

    0.787 in x 0.283 in

    View Product Specs
    OD.787
    ID.177
    T.283
    • SKU BNA-20
    • Size (D x T) 0.787 in x 0.283 in
    • Diameter 0.787 in
    • Inside Diameter 0.177 in
    • Thickness 0.283 in
    • Screw Size #6
    • Holding Force (lbs) 13

    1.26 in x 0.307 in

    View Product Specs
    OD1.260
    ID.216
    T.307
    • SKU BNA-32
    • Size (D x T) 1.26 in x 0.307 in
    • Diameter 1.26 in
    • Inside Diameter 0.216 in
    • Thickness 0.307 in
    • Screw Size #8
    • Holding Force (lbs) 55

    1.417 in x 0.3 in

    View Product Specs
    OD1.417
    ID.256
    T.300
    • SKU BNA-36
    • Size (D x T) 1.417 in x 0.3 in
    • Diameter 1.417 in
    • Inside Diameter 0.256 in
    • Thickness 0.3 in
    • Screw Size #10
    • Holding Force (lbs) 63.8

    0.984 in x 0.303 in

    View Product Specs
    OD.984
    ID.216
    T.303
    • SKU BNA-25
    • Size (D x T) 0.984 in x 0.303 in
    • Diameter 0.984 in
    • Inside Diameter 0.216 in
    • Thickness 0.303 in
    • Screw Size #8
    • Holding Force (lbs) 30.7

    0.63 in x 0.25 in

    View Product Specs
    OD.630
    ID.137
    T.250
    • SKU BNA-16
    • Size (D x T) 0.63 in x 0.25 in
    • Diameter 0.63 in
    • Inside Diameter 0.137 in
    • Thickness 0.25 in
    • Screw Size #4
    • Holding Force (lbs) 11

    2.953 in x 0.7 in

    View Product Specs
    OD2.953
    ID.413
    T.700
    • SKU BNA-75
    • Size (D x T) 2.953 in x 0.7 in
    • Diameter 2.953 in
    • Inside Diameter 0.413 in
    • Thickness 0.7 in
    • Screw Size #14
    • Holding Force (lbs) 356.7

    1.654 in x 0.346 in

    View Product Specs
    OD1.654
    ID.256
    T.346
    • SKU BNA-42
    • Size (D x T) 1.654 in x 0.346 in
    • Diameter 1.654 in
    • Inside Diameter 0.256 in
    • Thickness 0.346 in
    • Screw Size #10
    • Holding Force (lbs) 81.3

    2.362 in x 0.59 in

    View Product Specs
    OD2.362
    ID.335
    T.590
    • SKU BNA-60
    • Size (D x T) 2.362 in x 0.59 in
    • Diameter 2.362 in
    • Inside Diameter 0.335 in
    • Thickness 0.59 in
    • Screw Size #12
    • Holding Force (lbs) 246.6

    1.89 in x 0.425 in

    View Product Specs
    OD1.890
    ID.335
    T.425
    • SKU BNA-48
    • Size (D x T) 1.89 in x 0.425 in
    • Diameter 1.89 in
    • Inside Diameter 0.335 in
    • Thickness 0.425 in
    • Screw Size #11
    • Holding Force (lbs) 149.7

FAQs

Neodymium magnets are a member of the rare earth magnet family, and are the most permanent magnets in the world. They’re composed of Neodymium (Nd), Iron (Fe) and Boron (B), which makes them vulnerable to rust if they’re exposed to the elements. To protect the magnet from corrosion and to strengthen the brittle magnet material, the magnet is usually coated with nickel.

If left exposed to the elements, the iron in the magnet will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, we recommend coating the magnet in nickel plating. Other coating options are zinc, tin, copper, epoxy, silver and gold.

Neodymium magnets must be handled with care to avoid injury and damage to you and the magnet. Keep the following things in mind when handling neodymium magnets:

  • Fingers and hands can get severely pinched between two attracting magnets. It is important that they be kept out of the reach of small children.
  • Neodymium magnets are brittle and can peel, crack or shatter if allowed to slam together.
  • Eye protection should be worn.
  • Neodymium magnets can also damage items such as credit cards, magnetic identification cards, or video tapes.
  • Never place neodymium magnets near electronic devices. It is crucial to never allow them near a person with a pacemaker or similar medical aid.
  • Neodymium magnets should not be machined. The material is brittle and prone to chipping and cracking, so it does not machine well by conventional methods. Machining the magnets will generate heat, which if not carefully controlled, can demagnetize the magnet or even ignite the material which is toxic when burned.

Neodymium magnets have a variety of uses, which makes perfect sense considering they’re extremely strong, and affordable. Here are just a few of the ways you’ll see neodymium magnets applied to everyday life:

  • Electronics — Cell phones, loudspeakers, headphones, and more everyday electronics use neodymium magnets.
  • Industrial applications — Alternators, flow meters, linear actuators, gyroscopes.
  • Clamps — A couple neodymium blocks or cubes are perfect for holding pieces of metal in place. This is most common when used for welding, drilling, or machining purposes.
  • Green Energy — Both hybrid and electric vehicles employ neodymium magnets, as do wind turbines.
  • Healthcare — Pacemakers and magnetic resonance imaging (MRI) machines use neodymium magnets.
  • Oil Filters — Ever wonder how metal chips are filtered out of oil? Neodymium magnets!
  • Stud Finders — These magnets are powerful enough to find hidden nails and other metal pieces inside walls.
  • Magnetic Therapy — For those who use magnetic therapy as a healing tool, neodymium magnets fit the bill perfectly. There are different sized blocks to choose from depending on the size of the body being worked on.
  • Closers — Need to hold a brochure, box, binder, or other presentation piece shut? Neodymium magnets are perfect for the job.
  • Toys — You’ve probably played with magnets at some point in your life. They were probably neodymium magnets! They’re used quite often as entertainment.
  • Remagnetization — Neodymium magnets can be used to put the magnetization back in other types of magnets, such as Alnico horseshoes and other bar magnets.
  • Metal Detectors — Did you know neodymium magnets are used in metal detectors?

Like other rare earth magnets, neodymium magnets have a high resistance to demagnetization. They will not lose their magnetization around other magnets, or if dropped. However, neodymium magnets will completely lose their magnetization if heated above their Curie temperature, which is 590°F (310°C) for standard N grades. BuyMagnets.com offers a selection of neodymium disc magnets that are of high-temperature material, which can withstand higher temperatures without losing strength.

Neodymium magnets are available for standard temperature and high-temperature applications. Standard temperature neodymium magnets will begin to lose strength if they are heated above their maximum operating temperature, which is 180°F (80°C). High-temperature neodymium magnets can safely be used at operating temperatures up to 300° Fahrenheit (149° Celsius).

7
